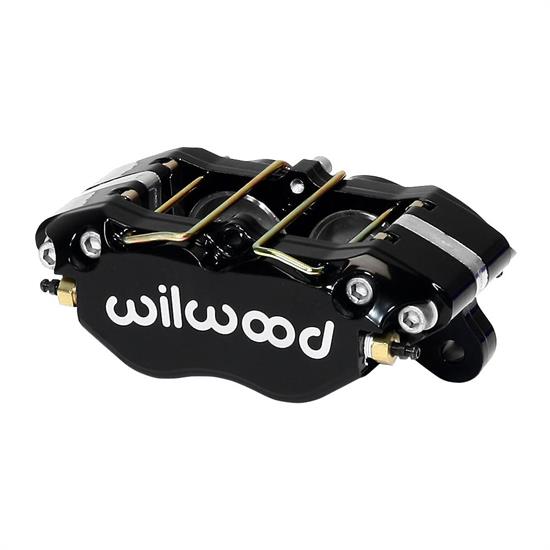

Wilwood 120-9692 Dynapro Lug Mount Caliper, 5.25 Inch Mount, 1.75/1.00

#8351209692

Wilwood 120-9692 Dynapro Lug Mount Caliper, 5.25 Inch Mount, 1.75/1.00

Name: Wilwood 120-9692 Dynapro Lug Mount Caliper, 5.25 Inch Mount, 1.75/1.00
Brand: Wilwood
SKU: 8351209692
Price: 302.03 USD
Availability: InStock

Write a Review

Ask a Question

$302.03

/each

Factory Shipped

$315.17

Save $13.14

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Four Caliper Pistons, Fittings Included

See more details

Key Specs

Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	Yes
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-9692 Details

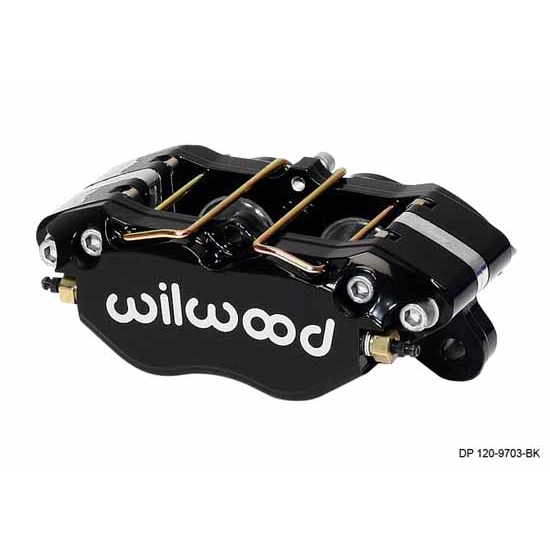

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. The strength of the DynaPro is a combination of process and design. The DynaPro is stress-flow forged from premium grade billet. Stress-flow forging realigns the grain structure of the metal within the contour of the body design. This process produces a part with superior strength over parts simply machined from straight grained blocks of billet. The FEA generated body design incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and the bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper body separation under load. Structural deflection and volume displacement testing have proven the efficiency of this innovative design. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The bottom line is a firm, responsive pedal with outstanding stopping power. The DynaPro is loaded with other enhancements for performance and wider application. The calipers feature Quick-E-Clip pad retainers that support a 7812 type brake pad from the top. Not only does it allow for fast pad service without caliper removal, the bottom pad supports have been removed to create a slimmer profile that can be more easily fitted into tight clearance applications. Heavy wall stainless steel pistons are used to resist corrosion and slow the heat transfer from the pads. The heavy wall sectional thickness also provides additional strength against backside deflection to provide a firm pedal feel and efficient clamping, even at the high pressures generated by power boost systems. For additional strength, all DP calipers can be fitted with a center bridge bolt kit to provide even greater resistance against body separation under high load. Center bridge bolts are included with all side inlet "SI" models and available as an upgrade option on all other models.

Wilwood 120-9692 Specifications

KEY SPECS
MFG. Part #	120-9692
Brand	Wilwood
Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	Yes
Brake Pads Included	No
Material Type	Aluminum

GENERAL
Piston Diameter	1.75"
Caliper Material Type	Aluminum
Caliper Color	Gray
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Lug
Rotor Diameter	13.06 Inch
Mounting Side	Universal
Bore Size	1.75"
Color	Black
Centerline of Holes	5.25"
Thread Pitch	1/8-27 NPT
Rotor Thickness	1.00"
Finish	Powder Coated
Bore 2 Size	1.75"
Total Piston Area	4.80 sq. in.
Mount Hole Size	0.39"
Mounted Height	2.10"

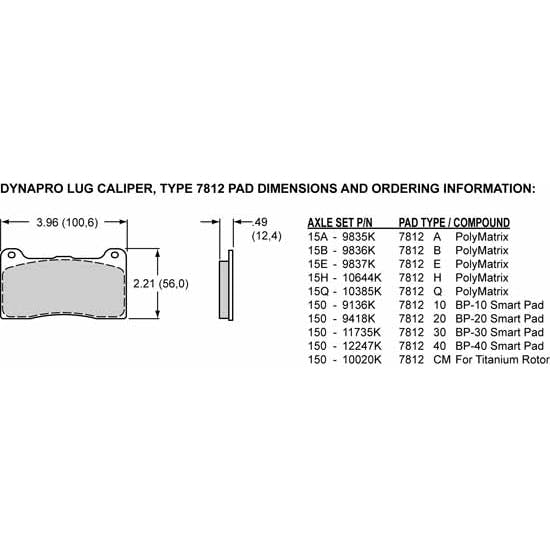

Pad Area	6.36 sq. in.
Pad Volume	2.10 cu. in.
GTIN Code	889545007169
Logo	Wilwood
