Wilwood 120-8727 Powerlite Radial Mount Caliper, 1.00, .790/.860 Inch

#8351208727

Wilwood 120-8727 Powerlite Radial Mount Caliper, 1.00, .790/.860 Inch

Name: Wilwood 120-8727 Powerlite Radial Mount Caliper, 1.00, .790/.860 Inch
Brand: Wilwood
SKU: 8351208727
Price: 197.43 USD
Availability: InStock

Write a Review

Ask a Question

$197.43

/each

Factory Shipped

$206.01

Save $8.58

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Four Caliper Pistons, 1.00" Bore Size

See more details

Key Specs

Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-8727 Details

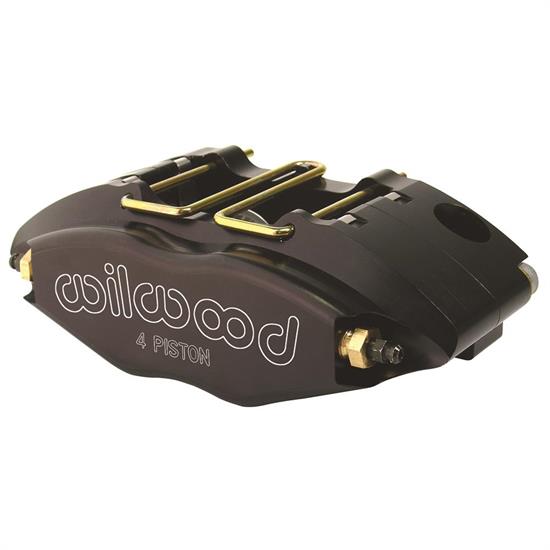

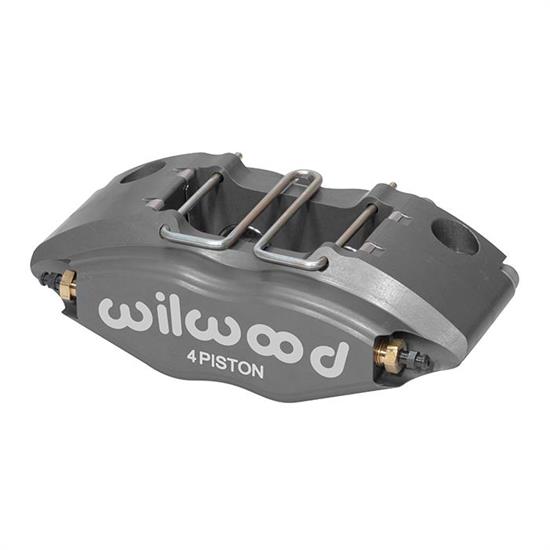

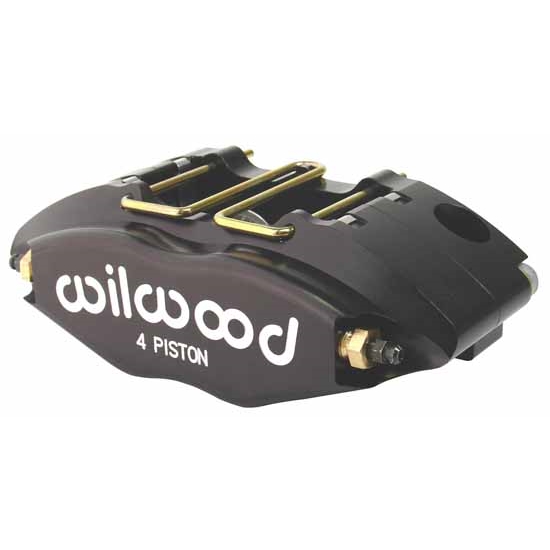

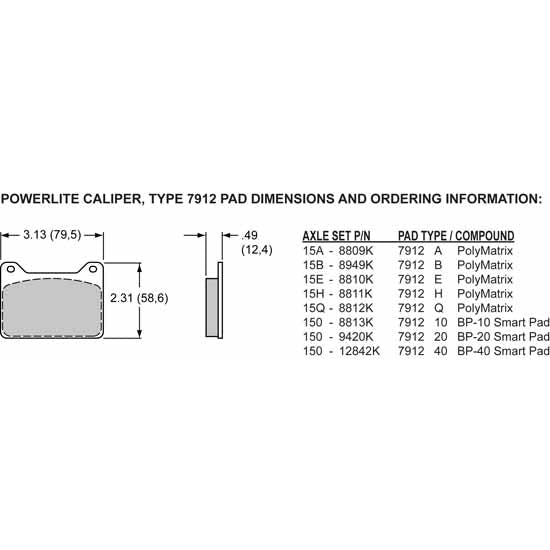

The Powerlite four piston radial mount caliper starts at 2.26 pounds with a sleek profile, superior strength, lightweight and durable in higher temperature situations. Easily adapted to a wide range of sports, rally, and off road driving applications. Strength comes from a combination of process and design. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper separation under load. The Powerlite uses a new 7912 type brake pad that is supported from the top by Quick-clip pad retainers. This eliminates the need for a pad support step in the bottom of the caliper and adds additional clearance for mounting closer to the hub on small wheel and rotor applications. The pad radius matches to rotor diameters between 9.45" (240,0 mm) and 11.75" (298,5 mm), and the caliper fits easily inside many 13.00" (330,2) wheel applications. The Quick-Clips also accommodate easy pad access without caliper removal. Brake pad compounds are available for the full range of sport and competition applications. Every caliper is equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws assure simple and effective air evacuation and allow one caliper to be mounted in of four positions. Bracket kits are used to install the calipers in place of most lug mount calipers. Radial mounting simplifies service and the bracket kits provide two planes of adjustment for precise alignment over the disc. Bracket kits include the radial mount bracket, studs, locknuts, and caliper alignment shims.

Wilwood 120-8727 Specifications

KEY SPECS
MFG. Part #	120-8727
Brand	Wilwood
Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No
Material Type	Aluminum

GENERAL
Piston Diameter	1.00"
Caliper Material Type	Aluminum
Caliper Color	Gray
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Radial
Rotor Diameter	11 Inch
Mounting Side	Universal
Bore Size	1.00"
Color	Ano
Centerline of Holes	5.08"
Thread Pitch	1/8-27 NPT
Rotor Thickness	0.86"
Finish	Anodized
Bore 2 Size	1.00"
Total Piston Area	1.58 sq. in.
Mount Hole Size	0.40"
Mounted Height	1.56"
Pad Area	5.00 sq. in.
Pad Volume	1.80 cu. in.
GTIN Code	889545006339
Logo	Wilwood
