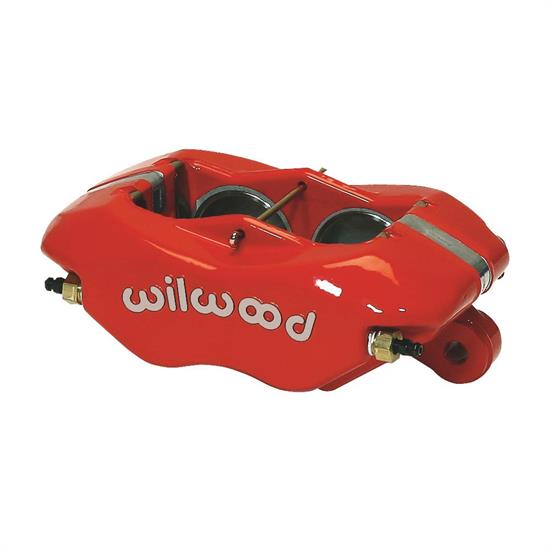

Wilwood 120-6816-RD Forged Dynalite Red Caliper, 1.75 / .81 Inch

-7%

#8351206816RD

Wilwood 120-6816-RD Forged Dynalite Red Caliper, 1.75 / .81 Inch

Name: Wilwood 120-6816-RD Forged Dynalite Red Caliper, 1.75 / .81 Inch
Brand: Wilwood
SKU: 8351206816RD
Price: 214.95 USD
Availability: InStock
Rating: 4.5 (2 reviews)

2 Reviews

1 Question

Calipers are designed to accept a .81" thick rotor
Features a forged aluminum construction with a red powder coated finish
Each caliper is equipped with Wildwood's SRS stainless steel bridge plates

$214.95

/each

In Stock

$232.14

Save $17.19

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Four Caliper Pistons, 1.75" Bore Size

Calipers are designed to accept a .81" thick rotor
Features a forged aluminum construction with a red powder coated finish
Each caliper is equipped with Wildwood's SRS stainless steel bridge plates
Built with high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer
Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right or left position

See more details

Key Specs

Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-6816-RD Details

The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. Forged Dynalites are the strongest calipers in the class, with weights starting at 2.80 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size. Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power. The superior strength of this innovative design is combined with proven performance features from Wilwood's earlier designs. Each caliper is equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking. Other standard Wilwood features include high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right or left position. Standard race calipers feature Wilwood's signature bright black anodized finish to resist corrosion and maintain their high tech style. Polished calipers (shown at right) are also available for custom show car applications. Forged Dynalite calipers are a direct replacement for all Wilwood Dynalite and similar competitive brand calipers with 5.25" centered mounting lugs. The Forged Dynalite uses the same 7112 type brake pad used in all earlier versions of this caliper. The full range of Wilwood pad compounds is available to match brake response and heat range to any application.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 120-6816-RD Specifications

KEY SPECS
MFG. Part #	120-6816-RD
Brand	Wilwood
Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No
Material Type	Forged Aluminum

GENERAL
Piston Diameter	1.75"
Caliper Material Type	Aluminum
Caliper Color	Red
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Lug
Sold in Quantity	Each
Rotor Diameter	13.06 Inch
Mounting Side	Universal
Bore Size	1.75"
Color	Red
Centerline of Holes	5.25"
Thread Pitch	1/8-27 NPT
Rotor Thickness	0.81"
Finish	Powder Coated
Bore 2 Size	1.75"
Total Piston Area	4.80 sq. in.
Mount Hole Size	0.39"
Mounted Height	2.03"
Pad Area	6.36 sq. in.
Pad Volume	2.10 cu. in.
GTIN Code	889545005059
Logo	Wilwood

Ratings & Reviews

4.5

2 Reviews

Overall Assessment

Customers appreciate the product for its exceptional quality and practicality, highlighting its perfect fit and lack of leaks when installed in a 69 Camaro. Moreover, the product is regarded highly for performance even in models such as a 1970 Z-28 Camaro, denoting versatility. Many endorse its superior quality compared to others, establishing our product as a preferred, reliable option.

Write A Review

4.5

2 reviews

Filter by Ratings

Sort Reviews

Fast shipping and great product

4.0

4 years ago

Garen

Victoria BC Canada

Verified

I installed on my 69 Camaro. it worked perfect and no leeks .

Name brand

5.0

4 years ago

Hot Rod

Kinderhook NY

Verified

Good quality brakes to install on my 1970 Z-28 Camaro.

Would Recommend

Showing 2 of 2 reviews

Questions & Answers

1 Question • 1 Answer

Sort Questions

Will this part fit a 71 Chevelle

by Rick

• 8 years ago

1 answer

View Answer

1 of 1 questions shown
