Product Summary

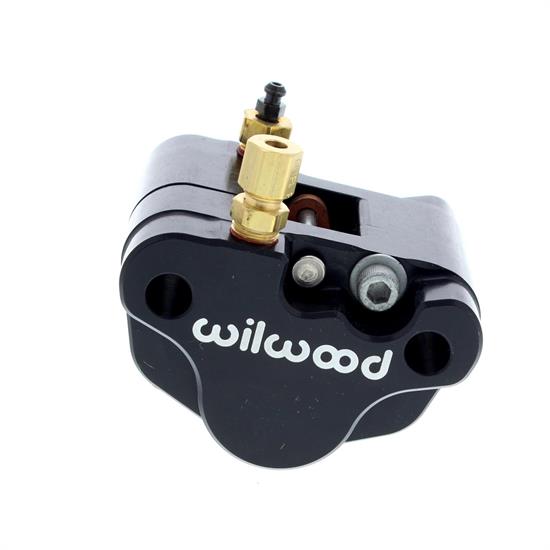

Quarter Midget, Two Caliper Pistons, 1.00" Bore Size

    Key Specs

    MFG. Part #120-5750
    BrandWilwood
    Caliper PistonsTwo

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Wilwood 120-5750 Details

    Our Kart/Jr. Dragster Caliper is designed specifically for racing. A unique self retracting and adjusting piston system has been incorporated which enables the piston to retract as the brake line pressure is reduced. The caliper can be mounted on either side of the vehicle and comes in three rotor widths. At just 1.20 pounds, the caliper comes with high performance, high friction brake pads. Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, pad retainer, internal fluid passage and blue anodized finish. A specifically designed master cylinder is also available for use with this caliper. The PS-1 Caliper is compact, lightweight (.93 pounds) and combines the strength of cast aluminum construction with a sleek low profile design. This caliper utilizes two stainless steel deep cup pistons to minimize heat transfer from the .30 thick pad to the brake fluid while employing high temperature square piston seals to control piston retraction. Internal crossover brake fluid passages eliminate the use of external crossover tubes. The PS-1 fits rotors with diameters ranging from 6.00 to 9.00 , thickness sizes from .15 to .20 .

    Wilwood 120-5750 Specifications

    KEY SPECS
    MFG. Part #120-5750
    BrandWilwood
    Caliper PistonsTwo
    GENERAL
    Caliper Mounting TypeBody
    Rotor Diameter8.75 Inch
    Mounting SideUniversal
    Bore Size1.00"
    ColorBlack
    Centerline of Holes2.25"
    Thread Pitch1/8-27 NPT
    Rotor Thickness0.19"
    FinishAnodized
    Material TypeAluminum
    Total Piston Area0.79 sq. in.
    Mount Hole Size0.39"
    Mounted Height0.00"
    Pad Area1.88 sq. in.
    Pad Volume0.34 cu. in.
    GTIN Code889545004236
