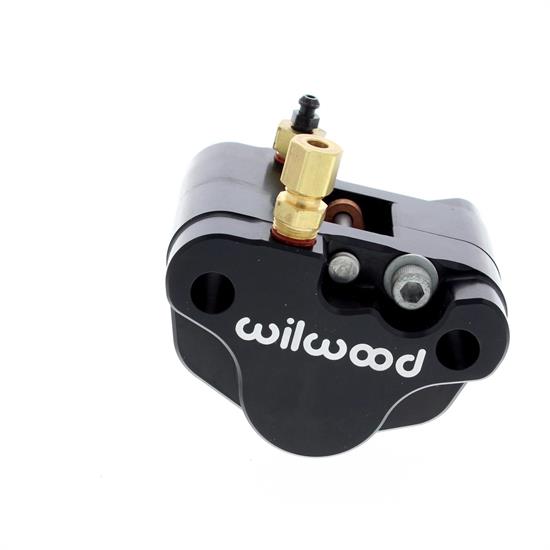

Wilwood 120-5498 Billet Go-Kart Brake Caliper, 1.00 Piston / .125 Disc

#8351205498

Wilwood 120-5498 Billet Go-Kart Brake Caliper, 1.00 Piston / .125 Disc

Features a unique self retracting and adjusting piston system
Caliper comes with high performance, high friction brake pads.
Made from aluminum with an anodized finish for enhanced corrosion protection

$182.64

/each

Factory Shipped

$190.58

Save $7.94

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Karting, Quarter Midget, One Caliper Pistons, Black

Features a unique self retracting and adjusting piston system
Caliper comes with high performance, high friction brake pads.
Made from aluminum with an anodized finish for enhanced corrosion protection
Internal crossover brake fluid passages eliminate the use of external crossover tubes
Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, and a pad retainer

See more details

Key Specs

MFG. Part #	120-5498
Caliper Pistons	One
Parking Brake Provision	No
Fittings Included	Yes
Brake Pads Included	Yes

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-5498 Details

Our Kart/Jr. Dragster Caliper is designed specifically for racing. A unique self retracting and adjusting piston system has been incorporated which enables the piston to retract as the brake line pressure is reduced. The caliper can be mounted on either side of the vehicle and comes in three rotor widths. At just 1.20 pounds, the caliper comes with high performance, high friction brake pads. Additional features include deep cup stainless steel piston for reduced heat transfer, cotter pin, pad retainer, internal fluid passage and blue anodized finish. A specifically designed master cylinder is also available for use with this caliper. The PS-1 Caliper is compact, lightweight (.93 pounds) and combines the strength of cast aluminum construction with a sleek low profile design. This caliper utilizes two stainless steel deep cup pistons to minimize heat transfer from the .30 thick pad to the brake fluid while employing high temperature square piston seals to control piston retraction. Internal crossover brake fluid passages eliminate the use of external crossover tubes. The PS-1 fits rotors with diameters ranging from 6.00 to 9.00 , thickness sizes from .15 to .20 .

Wilwood 120-5498 Specifications

KEY SPECS
MFG. Part #	120-5498
Brand	Wilwood
Caliper Pistons	One
Parking Brake Provision	No
Fittings Included	Yes
Brake Pads Included	Yes
Material Type	Aluminum

GENERAL
Piston Diameter	0.79"
Caliper Material Type	Aluminum
Caliper Color	Gray
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Body
Rotor Diameter	8.75 Inch
Mounting Side	Universal
Bore Size	1.00"
Color	Black
Centerline of Holes	2.25"
Thread Pitch	1/8-27 NPT
Rotor Thickness	0.12"
Finish	Anodized
Total Piston Area	0.79 sq. in.
Mount Hole Size	0.39"
Mounted Height	0.00"
Pad Area	1.88 sq. in.
Pad Volume	0.34 cu. in.
GTIN Code	889545004168
Logo	Wilwood
