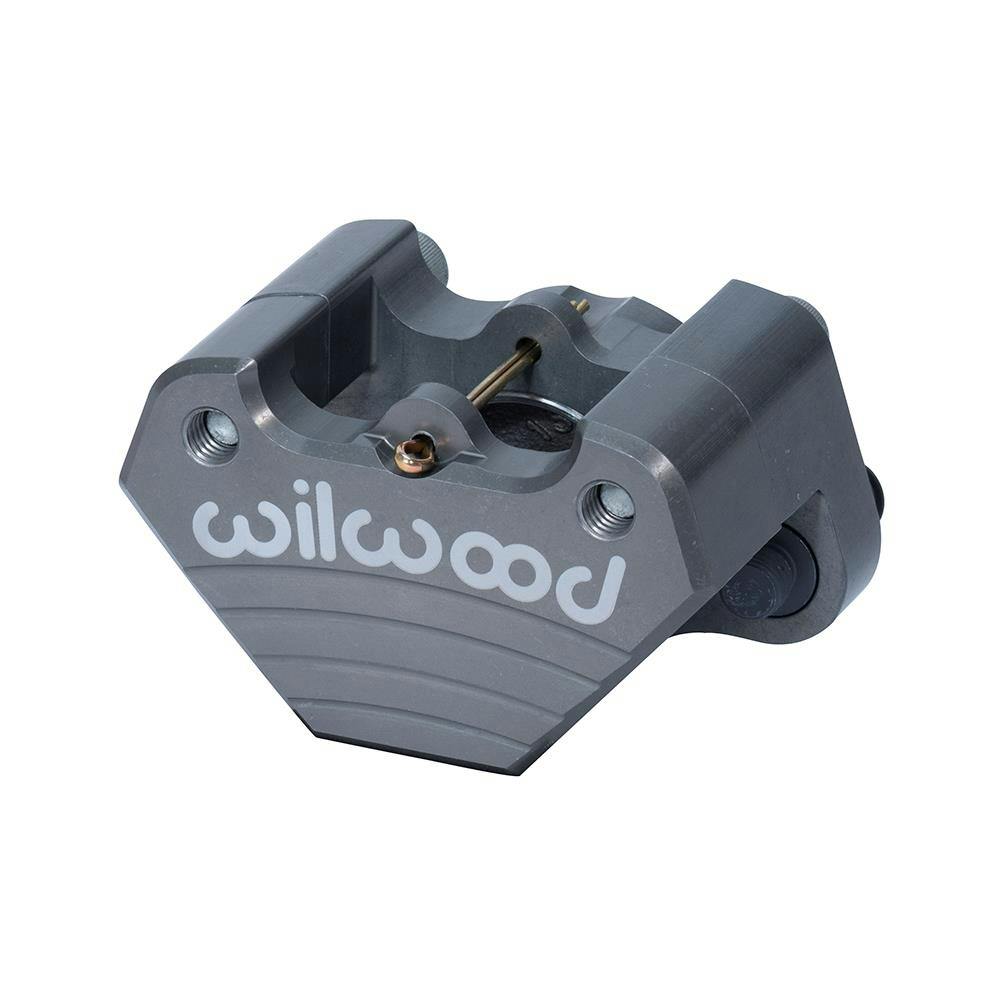

Wilwood 120-3277 Dynalite Single Floater Caliper, 1.75 / .38 "

#8351203277

Wilwood 120-3277 Dynalite Single Floater Caliper, 1.75 / .38 "

It uses "Single Quick Change" style pads
This floating billet aluminum housing has a single 1.75" stainless steel piston
Specially designed for Open Wheel, Drag Race, Karting and Motorcycle applications

$164.38

/each

In Stock

$171.53

Save $7.15

Order soon, only 1 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Micro Sprint, Midget, Mini Sprint, Sprint Car, Gray

It uses "Single Quick Change" style pads
This floating billet aluminum housing has a single 1.75" stainless steel piston
Specially designed for Open Wheel, Drag Race, Karting and Motorcycle applications
Multiple 1/8-27 NPT inlet and bleed screw locations allow for versatile mounting positions
A rigid outboard anvil half's low profile design allows it to fit in tight spaces where opposed piston designs will not

See more details

Key Specs

MFG. Part #	120-3277
Caliper Pistons	One
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-3277 Details

Floating billet aluminum housing with a single 1.75" stainless steel piston. Uses "Single Quick Change" style pads. Designed for Open Wheel, Drag Race, Karting and Motorcycle applications.

The Dynalite Single Floater is black anodized to resist corrosion and fits rotor diameters from 6.00" to 13.00".

Right Rear
Rigid outboard anvil halfs low profile design allows it to fit in tight spaces where opposed piston designs will not
Weighs only 1.4 pounds
Multiple 1/8-27 NPT inlet and bleed screw locations allow for versatile mounting positions
Comes with precision machined dry lubricated slide pins for bind-free operation
Black anodized to resist corrosion
Piston Bore: 1.75"
Maximum Rotor Width: 0.38"
lightningmum Rotor Width: 0.32"
Caliper Weight: 1.40 lbs.
Maximum Rotor Diameter: 13"
lightningmum Rotor Diameter: 6"

Charts

Caliper Dimensions (JPG)

Specs

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 120-3277 Specifications

KEY SPECS
MFG. Part #	120-3277
Brand	Wilwood
Caliper Pistons	One
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No
Material Type	Aluminum

GENERAL
Piston Diameter	1.75"
Caliper Material Type	Aluminum
Caliper Color	Gray
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Floating
Sold in Quantity	Each
Rotor Diameter	13 Inch
Mounting Side	Universal
Bore Size	1.75"
Color	Gray
Centerline of Holes	3.28"
Overall Length	4.28"
Thread Pitch	1/8-27 NPT
Rotor Thickness	0.38"
Finish	Type III Anodized
Total Piston Area	2.40 sq. in.
Mount Hole Size	0.00"
Mounted Height	0.81"
Pad Area	3.00 sq. in.
Pad Volume	1.10 cu. in.
GTIN Code	889545003864

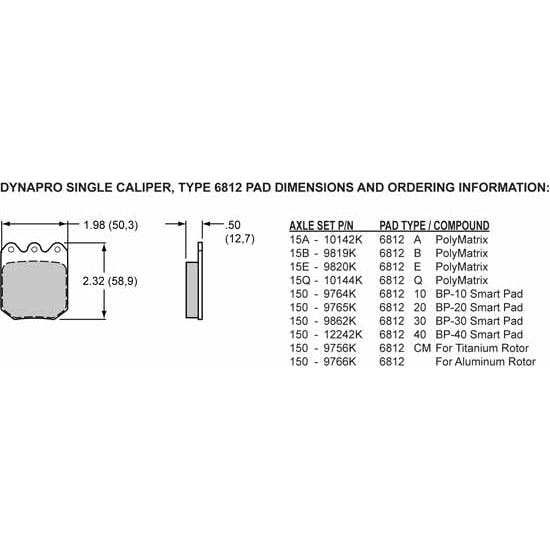

Notes	PADS: 8359820 8359764 94031017 9193385
Logo	Wilwood
