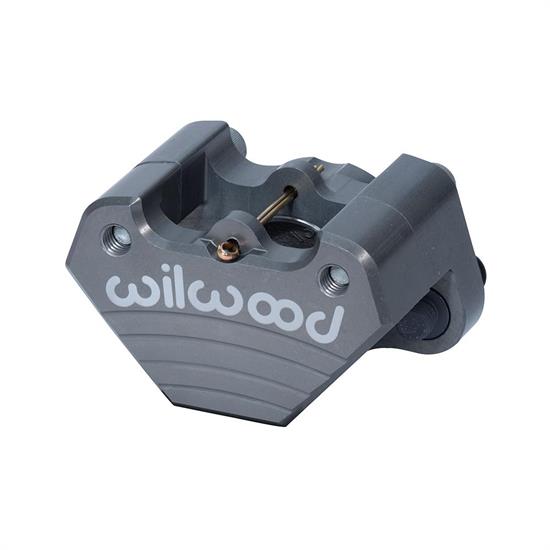

Wilwood 120-2498 Dynalite Floater Caliper, 1.75 Piston/.25 Disc
Wilwood 120-2498 Dynalite Floater Caliper, 1.75 Piston/.25 Disc
Micro Sprint, Midget, Mini Sprint, Sprint Car, Single Caliper Pistons, 1.75" Piston Diameter
In Stock
Ships FREE
Select Vehicle
Wilwood 120-2498 Dynalite Floater Caliper, 1.75 Piston/.25 Disc
X
Part # 8351202498
$119.15
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Caliper Pistons:
Single
Piston Diameter:
1.75"
Rotor Thickness:
0.25"
Material Type:
Aluminum
Finish:
Type III Anodized
Rotor Diameter:
13 Inch
Mounting Side:
Universal
Bore Size:
1.75"
Caliper Mounting Type:
Floating
Color:
Gray
Centerline of Holes:
3.28"
Overall Length:
4.28"
Thread Pitch:
1/8-27 NPT
Total Piston Area:
2.40 sq. in.
Mount Hole Size:
0.00"
Mounted Height:
0.81"
Pad Area:
3.00 sq. in.
Pad Volume:
1.10 cu. in.
MFG. Part #:
120-2498
GTIN Code:
889545003833
Sold in Quantity:
Each
Info
Floating billet aluminum housing with a single 1.75" stainless steel piston. Uses "Single Quick Change" style pads. Designed for Open Wheel, Drag Race, Karting and Motorcycle applications. The Dynalite Single Floater is black anodized to resist corrosion and fits rotor diameters from 6.00" to 13.00".
- Rigid outboard anvil halfs low profile design allows it to fit in tight spaces where opposed piston designs will not
- Weighs only 1.6 pounds
- Multiple 1/8"-27 NPT inlet and bleed screw locations allow for versatile mounting positions
- Comes with precision machined dry lubricated slide pins for bind-free operation
- Black anodized to resist corrosion
- Piston Bore:Â 1.75"
- Maximum Rotor Width:Â 0.25"
- Minimum Rotor Width:Â 0.18"
- Maximum Rotor Diameter:Â 13"
- Minimum Rotor Diameter:Â 6"
- Caliper Dimensions (Link)
