Add to Cart
$159.95

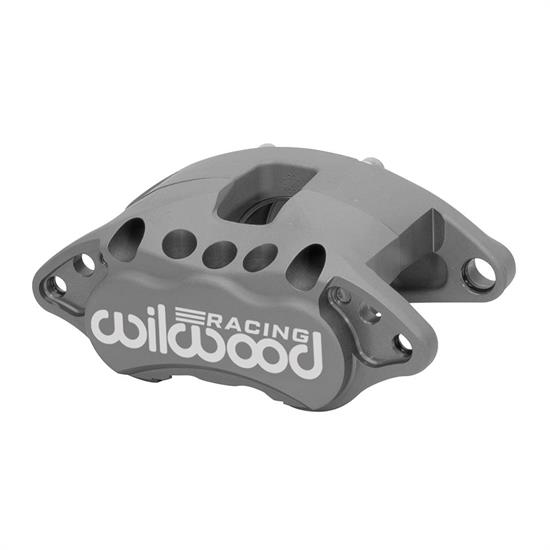

Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor

Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor

One Caliper Pistons, 2.75" Piston Diameter, 1.04" Rotor Thickness, Aluminum, Type III Anodized

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
X
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Wilwood 120-15611 D52-R Caliper 5.94 sqin Piston/1.04 Inch Rotor
Zoomed In Image
We estimate this item will ship on or before September 30th.
Part # 83512015611
$159.95
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Caliper Pistons:
One
Piston Diameter:
2.75"
Rotor Thickness:
1.04"
Material Type:
Aluminum
Finish:
Type III Anodized
Rotor Diameter:
12.19 Inch
Mounting Side:
Universal
Caliper Mounting Type:
Floating
Inlet Fitting:
1/8"-27 NPT
Centerline of Holes:
7.06"
Total Piston Area:
5.94 sq. in.
Mount Hole Size:
0.69"
Mounted Height:
0.77"
Pad Area:
10 sq. in.
Pad Volume:
3.9 cu. in.
Piston Type:
Stainless
Brake Pads Included:
No
MFG. Part #:
120-15611
GTIN Code:
889545090093
Sold in Quantity:
Each

Info

Wilwood's newest pure heavy-duty race caliper, the D52-R starts with a lightweight 4.3-pound forged aluminum Type III hard anodized body with a stainless steel piston. Choose a width of 2.75” or 2.38” pistons, and rotor widths of 0.81”, 1.04” and 1.28" thick in common 11.75”, or 12.19”, and up to 12.50” diameters. Caliper fluid inlet port centered directly behind the piston eliminates any interference with slide pins. Lower deflection rate and higher volumetric efficiency than all the competitions’ heavier cast models, D52-R calipers also use standard D52 pads available in a range of compounds for every application. Caliper mounting uses the original GM stock height and offset. D52-R Caliper, also known as D52R Caliper, is the pinnacle design for OEM replacement racing calipers.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
