#83512015610
$210.34
/kit
In Stock
$219.48
Save $9.14
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 120-15610 |
| Caliper Pistons | One |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
Need help?
855.313.9176Quick and Easy Returns

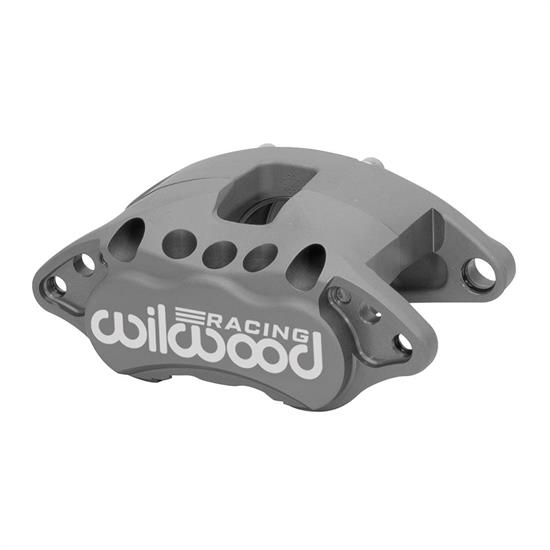

Return PolicyWilwood's newest pure heavy-duty race caliper, the D52-R starts with a lightweight 4.3-pound forged aluminum Type III hard anodized body with a stainless steel piston. Choose a width of 2.75” or 2.38” pistons, and rotor widths of 0.81”, 1.04” and 1.28" thick in common 11.75”, or 12.19”, and up to 12.50” diameters. Caliper fluid inlet port centered directly behind the piston eliminates any interference with slide pins. Lower deflection rate and higher volumetric efficiency than all the competitions’ heavier cast models, D52-R calipers also use standard D52 pads available in a range of compounds for every application. Caliper mounting uses the original GM stock height and offset. D52-R Caliper, also known as D52R Caliper, is the pinnacle design for OEM replacement racing calipers.
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 120-15610 |
| Brand | Wilwood |
| Caliper Pistons | One |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
| Material Type | Aluminum |
| GENERAL | |
| Piston Diameter | 2.75" |
| Caliper Material Type | Aluminum |
| Caliper Color | Clear Coat |
| Bracket Included | No |
| Caliper Mounting Type | Floating |
| Sold in Quantity | Each |
| Rotor Diameter | 12.19 Inch |
| Mounting Side | Universal |
| Inlet Fitting | 1/8"-27 NPT |
| Centerline of Holes | 7.06" |
| Rotor Thickness | 0.81" |
| Finish | Type III Anodized |
| Total Piston Area | 5.94 sq. in. |
| Mount Hole Size | 0.69" |
| Mounted Height | 0.77" |
| Pad Area | 10 sq. in. |
| Pad Volume | 3.90 cu. in. |
| Piston Type | Stainless |
| GTIN Code | 889545090086 |
| Logo | Wilwood Racing |
