Add to Cart
$129.95

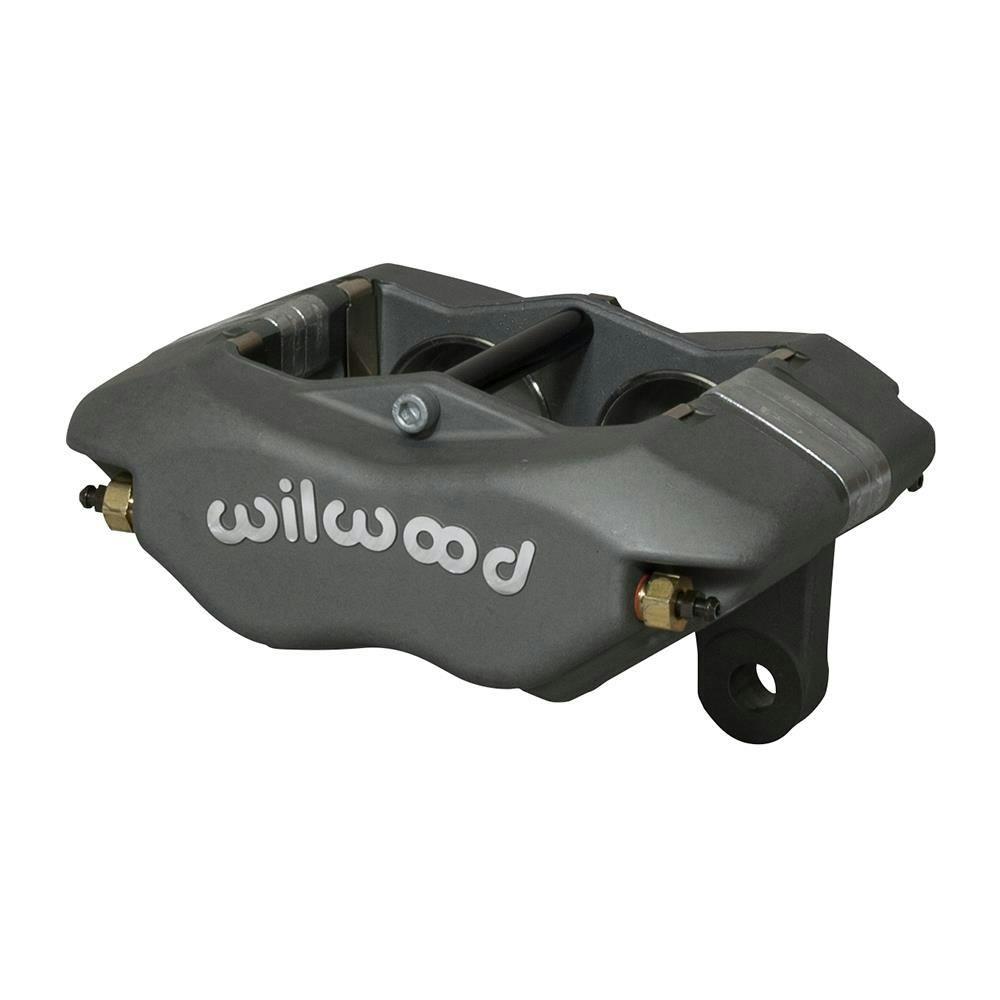

Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch
Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch

Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch

Dirt Late Model, Modified, Sprint Car, Four Caliper Pistons, 1.38" Piston Diameter, Gray

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch
Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch
Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch
Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch
Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch
X
Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch
Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch
Wilwood 120-15255 Forged Dynalite Caliper, 1.38 Piston/1 Inch
Zoomed In Image
Part # 83512015255
$129.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Caliper Pistons:
Four
Piston Diameter:
1.38"
Rotor Thickness:
1.00"
Material Type:
Forged Aluminum
Finish:
Type III Anodized
Rotor Diameter:
12.72 Inch
Bore Size:
1.38"
Color:
Gray
Inlet Fitting:
1/8-27 NPT
Centerline of Holes:
3.5"
Overall Length:
7.01"
Caliper Finish:
Anodized
Piston Type:
Stainless
MFG. Part #:
120-15255
Sold in Quantity:
Each

Info

Wilwoods new Forged Narrow Mount Dynalite (FNDL) calipers are ideal for and widely used in many competition applications including late models,modifieds, sprints, off road and road racing. Computer generated design and stress analysis technology, is the latest innovation from Wilwood providing substantial improvements in strength and performance over all comparable caliper models.

Forged Narrow Mount Dynalites are the strongest calipers in the class. FNDL calipers are a direct replacement for all previous Wilwood NDL’s and similar competitive brands with 3.50" centered mounting tabs. A total of five bolts provide superior bridge strength and positive retention of the top loaded 7816 or 7216 type brake pads. The full range of PolyMatrix pad compounds is available to match the brake response and heat range requirements of any competition application.

  • Strongest calipers in the class
  • 3.50" centered mounting tabs
  • Superior bridge strength and positive retention
  • 5 bolts providing bridge strenth and positive retention

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
