#83512014706BK

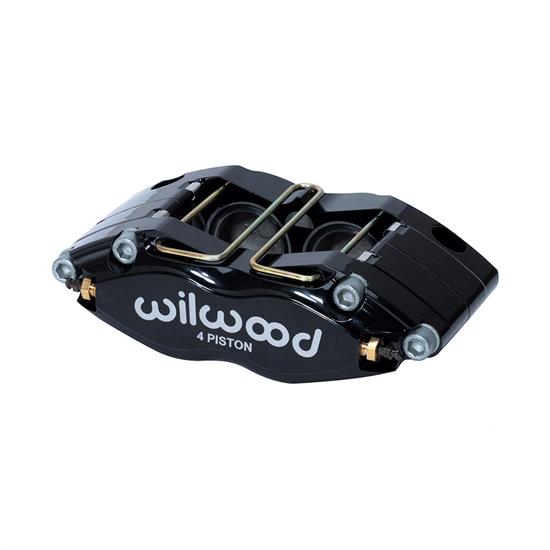

Wilwood 120-14706-BK Dynapro Dust Seal Radial Mount
- Dynapro four piston dust seal radial mount calipers (DPR-DS) are an example of Wilwood’s continuing upgrade and improvement processes
- Combine pure race technology with a new generation of Wilwood performance enhancements
- The Dynapro-DS combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions
$425.07
/each
Factory Shipped
$443.55
Save $18.48
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Four Caliper Pistons, Black
- Dynapro four piston dust seal radial mount calipers (DPR-DS) are an example of Wilwood’s continuing upgrade and improvement processes
- Combine pure race technology with a new generation of Wilwood performance enhancements
- The Dynapro-DS combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions
- The addition of dust wiper seals allow this caliper to be used in localities that require a method of environmental sealing
Key Specs
| MFG. Part # | 120-14706-BK |
| Caliper Pistons | Four |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 120-14706-BK Details
Wilwood 120-14706-BK Details
- Dynapro four piston dust seal radial mount calipers (DPR-DS) are an example of Wilwood’s continuing upgrade and improvement processes
- Combine pure race technology with a new generation of Wilwood performance enhancements
- The Dynapro-DS combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions
- The addition of dust wiper seals allow this caliper to be used in localities that require a method of environmental sealing
- With an overall weight as light as 3
- 58 pounds, the Dynapro series of calipers has become a favored choice for a broad range of sports, rally, and off-road driving applications
Wilwood 120-14706-BK Specifications
Wilwood 120-14706-BK Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 120-14706-BK |
| Brand | Wilwood |
| Caliper Pistons | Four |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
| Material Type | Aluminum |
| GENERAL | |
| Piston Diameter | 1.62" |
| Caliper Material Type | Aluminum |
| Caliper Color | Black |
| Thread Size | 1/8" NPT |
| Bracket Included | No |
| Sold in Quantity | Each |
| Rotor Diameter | 12.19 Inch |
| Color | Black |
| Thread Pitch | 1/8 in. NPT |
| Rotor Thickness | 0.81" |
| Finish | Powder Coated |
| Total Piston Area | 4.12 sq. in. |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 3.00 cu. in. |
| Mount Type | Radial |
| Piston Type | Stainless |
| GTIN Code | 889545083552 |
| Logo | Wilwood |
| Caliper Series | DynaPro Dust-Boot |
