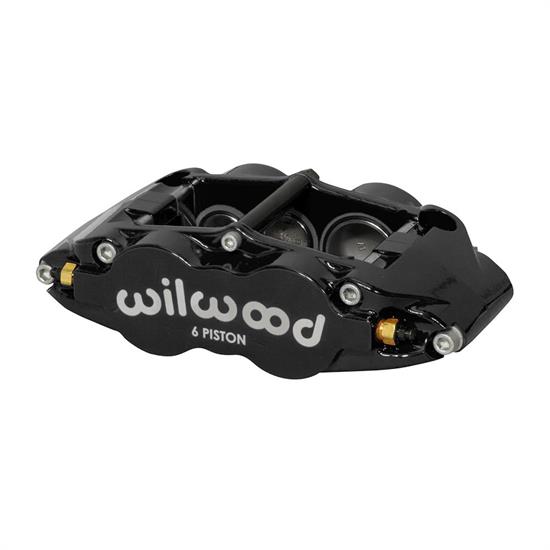

Wilwood 120-14490-BK Forged Superlite 6 Dust Seal Radial Mount
Wilwood 120-14490-BK Forged Superlite 6 Dust Seal Radial Mount

Wilwood 120-14490-BK Forged Superlite 6 Dust Seal Radial Mount

Oval Track Cars, Six Caliper Pistons, 1.25" Rotor Thickness, Aluminum, Black powdercoated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-14490-BK Forged Superlite 6 Dust Seal Radial Mount
Wilwood 120-14490-BK Forged Superlite 6 Dust Seal Radial Mount
Wilwood 120-14490-BK Forged Superlite 6 Dust Seal Radial Mount
X
Wilwood 120-14490-BK Forged Superlite 6 Dust Seal Radial Mount
Zoomed In Image
We estimate this item will ship on or before March 31st.
Part # 83512014490BK
$383.27
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Caliper Pistons:
Six
Rotor Thickness:
1.25"
Material Type:
Aluminum
Finish:
Black powdercoated
Rotor Diameter:
14 Inch
Color:
Black
Total Piston Area:
4.04 sq. in.
Pad Area:
8.20 sq. in.
Pad Volume:
3.80 cu. in.
Mount Type:
Radial
Piston Type:
Stainless
MFG. Part #:
120-14490-BK
GTIN Code:
889545080315

Info

Forged Narrow Superlite 6 Dust Seal Radial Mount

The Forged Narrow Superlite 6R Dust Seal (FNSL6R-DS) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. The addition of Wilwood’s exclusive wiper dust seal allows these calipers to be used in areas that may mandate environmental sealing. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

The key to the superior performance of the FNSL6R-DS comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer generated solid modeling and FEA stress analysis technology. The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body.

A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The standard FNSL6R-DS calipers feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. Calipers can be upgraded with Wilwood's exclusive Thermlock pistons. This multi-part piston design creates a highly efficient thermal barrier to further reduce heat transfer from the pads to caliper body, seals, and fluid. Cooler temperatures translate to longer service life and less chance for heat induced pedal fade.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
