| Caliper Pistons | Two |
| Fitting Attachment 1 | Female Threads |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
Need help?
855.313.9176Quick and Easy Returns

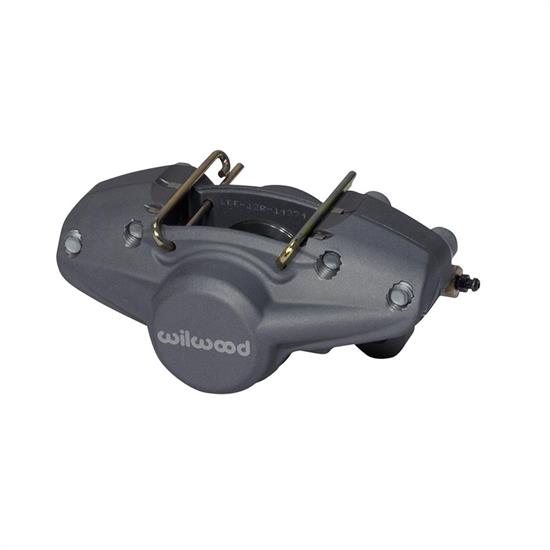

Return PolicyWLD-19 racing calipers provide the ultimate in strength, weight savings, and high efficiency brake clamping for F/F and all other formula category road race vehicles configured for use with the traditional LD19 lug mount style calipers. The calipers feature a high strength, light-weight 2.3 pound forged aluminum body fitted with machined stainless steel pistons in the standard WLD19 model, or heat-blocking Thermlock® pistons in the WLD19/ST models. All WDL19 series calipers utilize the same mounting centers, height and offset as the traditional LD20 calipers. The calipers accept Wilwood type 5310 brake pads, or any brake pad made to fit the original LD19 models.
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 120-14374 |
| Brand | Wilwood |
| Caliper Pistons | Two |
| Fitting Attachment 1 | Female Threads |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
| Material Type | Aluminum |
| GENERAL | |
| Piston Diameter | 1.62" |
| Caliper Material Type | Aluminum |
| Caliper Color | Gray |
| Thread Size | 3/8"-24 |
| Bracket Included | No |
| Rotor Diameter | 10 Inch |
| Color | Ano |
| Rotor Thickness | 0.28" |
| Finish | Type III Anodized |
| Total Piston Area | 2.06 sq. in. |
| Pad Area | 3.79 sq. in. |
| Pad Volume | 1.48 cu. in. |
| Mount Type | Lug |
| Piston Type | Thermlock |
| GTIN Code | 889545071276 |
| Notes | Accepts up to 10.00 in. rotor diameter. |
| Logo | Wilwood |
