#83512013439RD

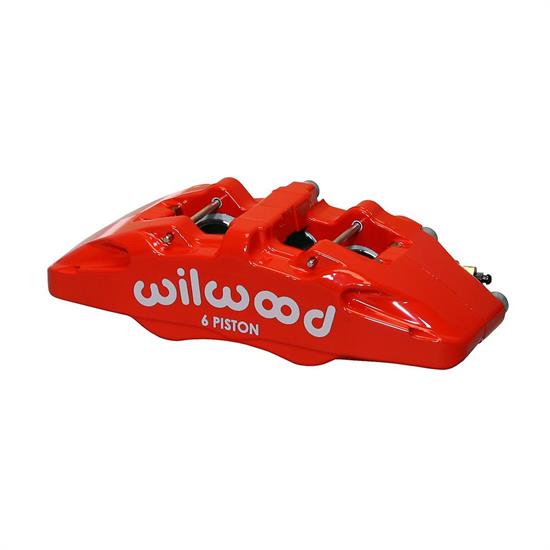

Wilwood 120-13439-RD Dynapro 6A Lug Mount Caliper, LH, Red
Gray
$352.85
/each
Factory Shipped
$381.08
Save $28.23
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Caliper Pistons | Six |
| Fitting Attachment 1 | Female Threads |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 120-13439-RD Details
Wilwood 120-13439-RD Details
Wilwood's newest DynaPro DP6A Calipers combine pure-bred racing technology with contemporary design to deliver superior braking and high-tech style on a wide range of custom, show, and competition vehicles. This newest model in the DynaPro series features a reinforced triple bridge construction, with five high strength steel bridge bolts, making it the strongest and stiffest DP6 caliper ever built. Offers direct interchange with all 5.25” pattern lug mount DynaPro and Dynalite calipers. With Forged aluminum, six piston differential bore body and stainless steel pistons with high temperature seals. DP6A calipers accommodate rotors up to 13”inch diameter and widths from .38” to 1.10”. DP6A calipers are available in gloss black or red powder coat, or Wilwood’s Quick-Silver nickel base plating.
- LH mount side
- Red Powdercoated finish
- 0.81" rotor width
- Aluminum construction
- Sold each
Wilwood 120-13439-RD Specifications
Wilwood 120-13439-RD Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 120-13439-RD |
| Brand | Wilwood |
| Caliper Pistons | Six |
| Fitting Attachment 1 | Female Threads |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
| Material Type | Aluminum |
| GENERAL | |
| Piston Diameter | 1.38" |
| Caliper Material Type | Aluminum |
| Caliper Color | Red |
| Thread Size | 1/8" NPT |
| Bracket Included | No |
| Sold in Quantity | Each |
| Rotor Diameter | 13 Inch |
| Color | Red |
| Rotor Thickness | 0.81" |
| Finish | Powder Coated |
| Bore 2 Size | 1.00" |
| Bore 3 Size | 1.000" |
| Total Piston Area | 3.08 sq. in. |
| Pad Area | 7.30 sq. in. |
| Pad Volume | 2.40 cu. in. |
| Mount Type | Lug |
| Position | Left |
| GTIN Code | 889545048629 |
| Notes | Accepts 6712 type pad. |
| Logo | Wilwood |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
Hi if i buy this caliper, does thia includes all the hardware like the bolta and nuts?
by Jhune
• 7 years ago
1 answer
View Answer
1 of 1 questions shown
Fitment
Fitment
1974-1978 Ford Mustang II
1971-1980 Ford Pinto
