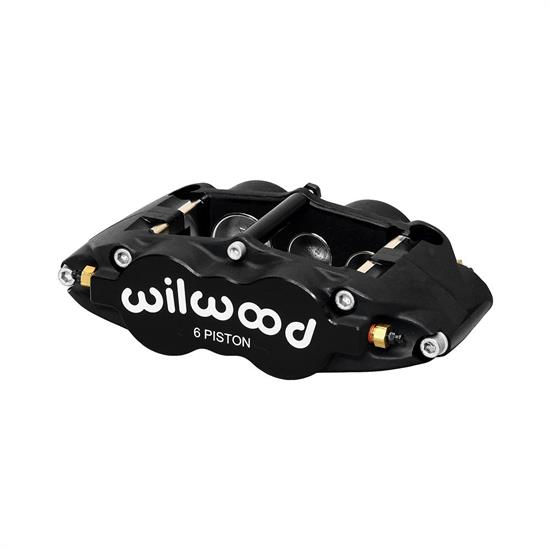

Wilwood 120-13235 Forged Superlite 6 Radial Mount RH Caliper, 1.25

#83512013235

Wilwood 120-13235 Forged Superlite 6 Radial Mount RH Caliper, 1.25

Features internal fluid ports that eliminate the external fluid cross-over tubes
Will accept 1-1/4" thick rotors
Transfer tube has been replaced with two additional bleed screw assemblies

$338.91

/each

Factory Shipped

$353.64

Save $14.73

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Oval Track Cars, Six Caliper Pistons, 1.62" Bore Size

Features internal fluid ports that eliminate the external fluid cross-over tubes
Will accept 1-1/4" thick rotors
Transfer tube has been replaced with two additional bleed screw assemblies
Assembled weight is just 4.4 pounds
Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings

See more details

Key Specs

Caliper Pistons	Six
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-13235 Details

The Superlite 6R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL6R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required. The FSL6R has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required. The most noteworthy feature of all the FSL6R caliper models is the exceptional strength and reduced weight of the forging. With assembled weights just at 4.4 pounds, the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL6R body is stress-flow forged from a premium grade aluminum alloy billet.

Wilwood 120-13235 Specifications

KEY SPECS
MFG. Part #	120-13235
Brand	Wilwood
Caliper Pistons	Six
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No
Caliper Finish	Powder Coated
Material Type	Forged Aluminum

GENERAL
Piston Diameter	1.62"
Caliper Material Type	Aluminum
Caliper Color	Gray
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Radial
Rotor Diameter	14 Inch
Mounting Side	Right Hand
Bore Size	1.62"
Color	Gray
Centerline of Holes	5.98"
Thread Pitch	1/8-27 NPT
Rotor Thickness	1.25"
Finish	Type III Anodized
Bore 2 Size	1.12"
Bore 3 Size	1.12"
Total Piston Area	4.04 sq. in.
Mount Hole Size	0.39"
Mounted Height	1.62"
Pad Area	8.20 sq. in.
Pad Volume	4.90 cu. in.
GTIN Code	889545003109
Logo	Wilwood
