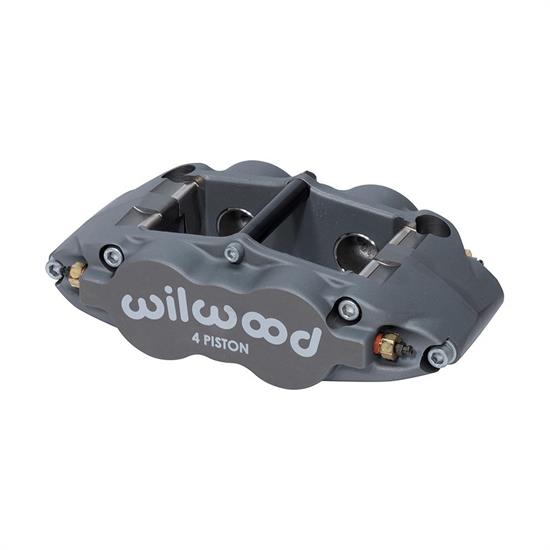

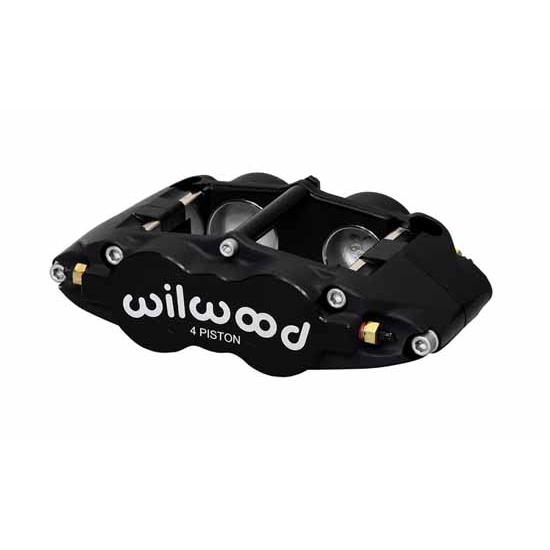

Wilwood 120-13234 Forged Superlite 4 Radial Mount Caliper

#83512013234

Wilwood 120-13234 Forged Superlite 4 Radial Mount Caliper

Name: Wilwood 120-13234 Forged Superlite 4 Radial Mount Caliper
Brand: Wilwood
SKU: 83512013234
Price: 302.38 USD
Availability: LimitedAvailability

Write a Review

Ask a Question

$302.38

/each

In Stock

$315.53

Save $13.15

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Four Caliper Pistons, 1.12" Bore Size

See more details

Key Specs

Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-13234 Details

The Superlite 4R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL4R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary. The most noteworthy feature of all the FSL4R caliper models is the exceptional strength and reduced weight of the forging. With assembled weights just at 4.4 pounds, the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL4R body is stress-flow forged from a premium grade aluminum alloy billet.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 120-13234 Specifications

KEY SPECS
MFG. Part #	120-13234
Brand	Wilwood
Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No
Material Type	Forged Aluminum

GENERAL
Piston Diameter	1.12"
Caliper Material Type	Aluminum
Caliper Color	Gray
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Radial
Rotor Diameter	14 Inch
Mounting Side	Universal
Bore Size	1.12"
Color	Gray
Centerline of Holes	5.98"
Thread Pitch	1/8-27 NPT
Rotor Thickness	0.81"
Finish	Type III Anodized
Bore 2 Size	1.12"
Total Piston Area	1.96 sq. in.
Mount Hole Size	0.39"
Mounted Height	1.62"
Pad Area	8.20 sq. in.
Pad Volume	4.90 cu. in.
GTIN Code	889545003093
Logo	Wilwood
