Product Summary

Universal Fit, Four Caliper Pistons, 1.88" Bore Size

    Key Specs

    MFG. Part #120-13227
    BrandWilwood
    Caliper PistonsFour

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

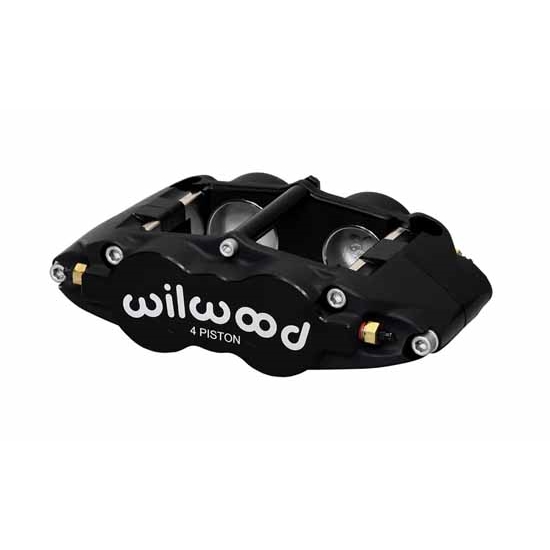

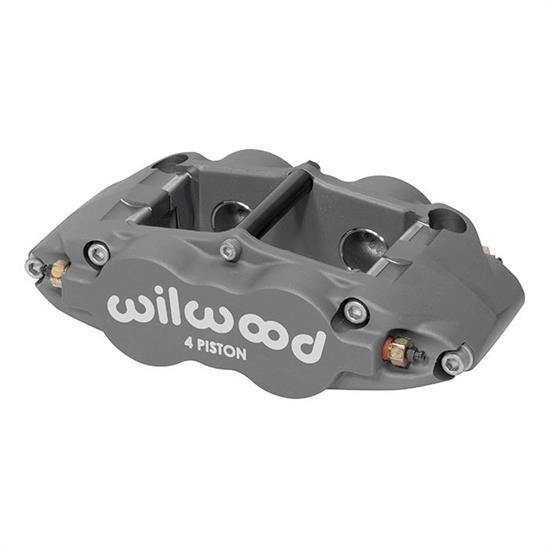

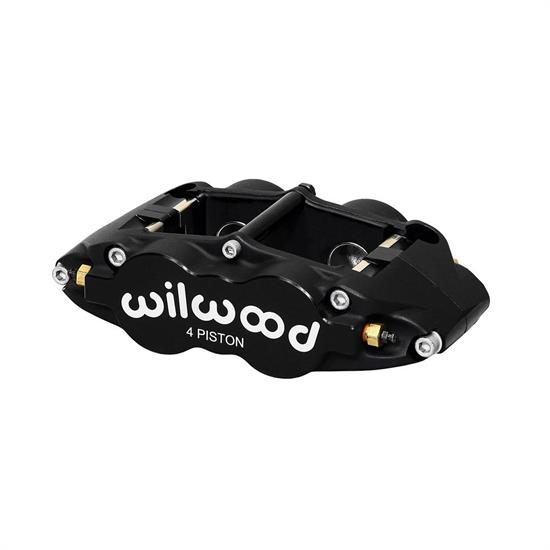

    Wilwood 120-13227 Details

    The Superlite 4R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL4R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary. The most noteworthy feature of all the FSL4R caliper models is the exceptional strength and reduced weight of the forging. With assembled weights just at 4.4 pounds, the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL4R body is stress-flow forged from a premium grade aluminum alloy billet.

    Wilwood 120-13227 Specifications

    KEY SPECS
    MFG. Part #120-13227
    BrandWilwood
    Caliper PistonsFour
    GENERAL
    Caliper Mounting TypeRadial
    Rotor Diameter14 Inch
    Mounting SideRight Hand
    Bore Size1.88"
    ColorAno
    Centerline of Holes5.98"
    Thread Pitch1/8-27 NPT
    Rotor Thickness1.25"
    FinishAnodized
    Material TypeForged Aluminum
    Bore 2 Size1.75"
    Total Piston Area5.18 sq. in.
    Mount Hole Size0.39"
    Mounted Height1.62"
    Pad Area8.20 sq. in.
    Pad Volume4.90 cu. in.
    GTIN Code889545003000
