Add to Cart
$108.99

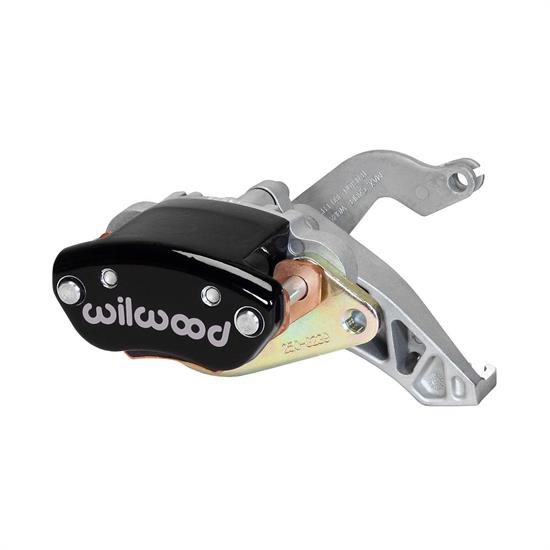

Wilwood 120-12070-BK MC4 LH Mechanical Caliper, 1.19 Piston/.81 Disc
Wilwood 120-12070-BK MC4 LH Mechanical Caliper, 1.19 Piston/.81 Disc

Wilwood 120-12070-BK MC4 LH Mechanical Caliper, 1.19 Piston/.81 Disc

Universal Fit, Single Caliper Pistons, 0.81" Rotor Thickness, Aluminum, Powder Coated, Black

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-12070-BK MC4 LH Mechanical Caliper, 1.19 Piston/.81 Disc
Wilwood 120-12070-BK MC4 LH Mechanical Caliper, 1.19 Piston/.81 Disc
Zoomed In Image
Part # 83512012070BK
$108.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Caliper Pistons:
Single
Rotor Thickness:
0.81"
Material Type:
Aluminum
Finish:
Powder Coated
Bore Size:
1.19"
Color:
Black
Centerline of Holes:
3.00"
Thread Pitch:
N-A
Rotor Diameter:
12.88 Inch
Caliper Mounting Type:
Floating
Mounting Side:
Left Hand
Total Piston Area:
1.19 sq. in.
Mount Hole Size:
0.67"
Mounted Height:
0.00"
Pad Area:
1.70 sq. in.
Pad Volume:
0.26 cu. in.
GTIN Code:
889545002645

Info

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810 thick, with 11.00 - 12.88 diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields. Engineered with noise-dampening features for quiet, rattle-free operation, the MC4 sliding caliper includes a steel bracket for convenient mounting. Available in both right-hand and left-hand construction, the caliper's lever cartridge can be clocked in three positions for optimum positioning and ease of cable routing. The 1.19 aluminum piston is fully dust booted to keep moisture and debris out. Each caliper is fitted with a cable return spring, and the mechanical lever accepts a .310 diameter barrel-ended parking brake cable*. The convenient manual adjuster requires no special tools, allowing incremental adjustment to compensate for pad and rotor wear. MC4 calipers are available with either black, silver or red high-gloss, high-temp, brake fluid resistant powder coat and feature Wilwood's signature logo.
Some parts are not legal for use in California or other states with similar laws/regulations
