Wilwood 120-12069 MC4 RH Mechanical Caliper, 1.19 Piston, .81 Disc

#83512012069

Wilwood 120-12069 MC4 RH Mechanical Caliper, 1.19 Piston, .81 Disc

Name: Wilwood 120-12069 MC4 RH Mechanical Caliper, 1.19 Piston, .81 Disc
Brand: Wilwood
SKU: 83512012069
Price: 171.56 USD
Availability: InStock

Write a Review

Ask a Question

Side:

Right Hand / Silver

Left Hand / Red Right Hand / Red Left Hand / SilverRight Hand / Black

$171.56

/each

Factory Shipped

$179.01

Save $7.45

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, One Caliper Pistons, 1.19" Bore Size

See more details

Key Specs

MFG. Part #	120-12069
Caliper Pistons	One
Parking Brake Provision	Yes
Fittings Included	No
Brake Pads Included	Yes

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-12069 Details

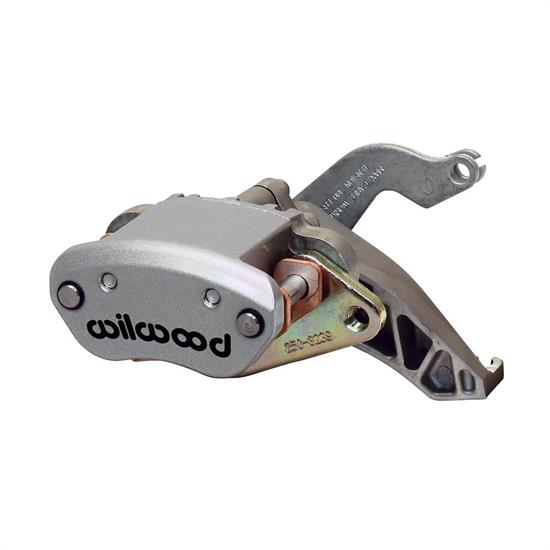

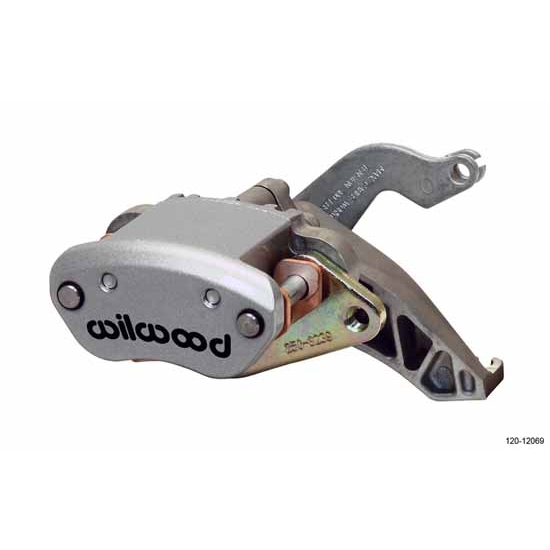

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810 thick, with 11.00 - 12.88 diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields. Engineered with noise-dampening features for quiet, rattle-free operation, the MC4 sliding caliper includes a steel bracket for convenient mounting. Available in both right-hand and left-hand construction, the caliper's lever cartridge can be clocked in three positions for optimum positioning and ease of cable routing. The 1.19 aluminum piston is fully dust booted to keep moisture and debris out. Each caliper is fitted with a cable return spring, and the mechanical lever accepts a .310 diameter barrel-ended parking brake cable*. The convenient manual adjuster requires no special tools, allowing incremental adjustment to compensate for pad and rotor wear. MC4 calipers are available with either black, silver or red high-gloss, high-temp, brake fluid resistant powder coat and feature Wilwood's signature logo.

Wilwood 120-12069 Specifications

KEY SPECS
MFG. Part #	120-12069
Brand	Wilwood
Caliper Pistons	One
Parking Brake Provision	Yes
Fittings Included	No
Brake Pads Included	Yes
Material Type	Aluminum

GENERAL
Piston Diameter	1.19"
Caliper Material Type	Aluminum
Caliper Color	Gray
Bracket Included	No
Caliper Mounting Type	Floating
Rotor Diameter	12.88 Inch
Mounting Side	Right Hand
Bore Size	1.19"
Color	Natural
Centerline of Holes	3.00"
Thread Pitch	N-A
Rotor Thickness	0.81"
Finish	Powder Coated
Total Piston Area	1.19 sq. in.
Mount Hole Size	0.67"
Mounted Height	0.00"
Pad Area	1.70 sq. in.
Pad Volume	0.26 cu. in.
Brake Pad Material	High-Friction Metallic
GTIN Code	889545002607
Logo	Wilwood
