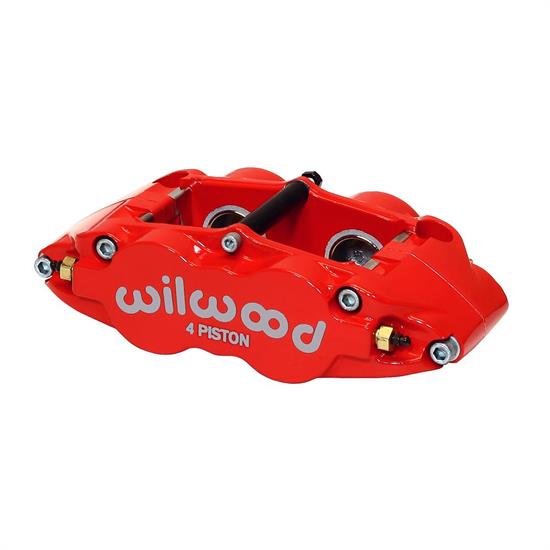

Wilwood 120-11782-RD Forged Superlite 4 Radial Mount Caliper, Red

#83512011782RD

Wilwood 120-11782-RD Forged Superlite 4 Radial Mount Caliper, Red

Name: Wilwood 120-11782-RD Forged Superlite 4 Radial Mount Caliper, Red
Brand: Wilwood
SKU: 83512011782RD
Price: 394.41 USD
Availability: InStock

Write a Review

Ask a Question

Color:

Red

Gray Black Polished

$394.41

/each

Factory Shipped

$411.56

Save $17.15

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Oval Track Cars, Four Caliper Pistons, 1.12" Bore Size

See more details

Key Specs

Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-11782-RD Details

The Forged Narrow Superlite 4R (FNSL4R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications. The key to the superior performance of the FNSL4R comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer generated solid modeling and FEA stress analysis technology. The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body. Available in diiferent piston bore sizes, provides braking as either a front or rear caliper. The standard FNSL4R calipers feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. Calipers can be upgraded with Wilwood's exclusive Thermlock pistons. This multi-part piston design creates a highly efficient thermal barrier to further reduce heat transfer from the pads to caliper body, seals, and fluid. Cooler temperatures translate to longer service life and less chance for heat induced pedal fade. In addition, each FNSL4R is equipped with SRS bridge plates. SRS plates eliminate all bridge wear caused by pad gouging and extend the service life of the caliper. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens the harmonic vibrations that contribute to pad squeal. Two piece bleed screws on each end and internal fluid crossovers prevent damage from track debris and other potential damage sources. High temperature, square faced bore seals provide the largest possible sealing area and controlled piston retraction on release. The full range of Wilwood pad compounds is available to match the brake response and heat range of any competition or sports driving application.

Wilwood 120-11782-RD Specifications

KEY SPECS
MFG. Part #	120-11782-RD
Brand	Wilwood
Caliper Pistons	Four
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No
Material Type	Forged Aluminum

GENERAL
Piston Diameter	1.12"
Caliper Material Type	Aluminum
Caliper Color	Red
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Radial
Rotor Diameter	14 Inch
Mounting Side	Universal
Bore Size	1.12"
Color	Red
Centerline of Holes	5.98"
Thread Pitch	1/8-27 NPT
Rotor Thickness	1.10"
Finish	Powder Coated
Bore 2 Size	1.12"
Total Piston Area	1.96 sq. in.
Mount Hole Size	0.39"
Mounted Height	1.45"
Pad Area	8.20 sq. in.
Pad Volume	3.80 cu. in.
GTIN Code	889545002300
Notes	Will fit 11.75 in. to 14 in. rotors.
Logo	Wilwood
