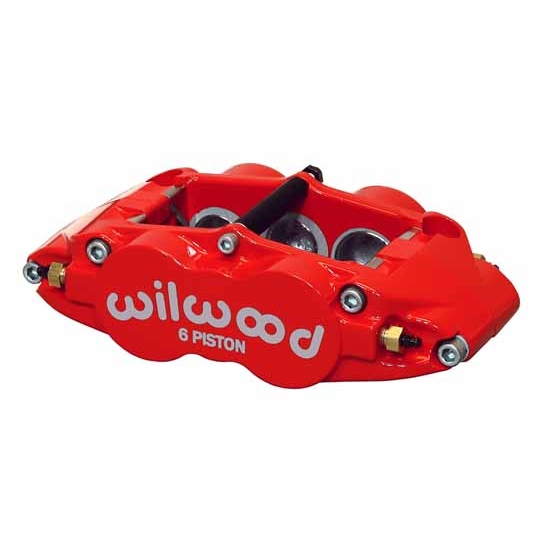

Wilwood 120-11779-RD Forged Narrow Superlite 6 Radial Mount LH Caliper
Wilwood 120-11779-RD Forged Narrow Superlite 6 Radial Mount LH Caliper

Wilwood 120-11779-RD Forged Narrow Superlite 6 Radial Mount LH Caliper

Universal Fit, Six Caliper Pistons, 1.25" Rotor Thickness, Aluminum, Powder Coated, Red

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-11779-RD Forged Narrow Superlite 6 Radial Mount LH Caliper
Wilwood 120-11779-RD Forged Narrow Superlite 6 Radial Mount LH Caliper
Zoomed In Image
We estimate this item will ship on or before June 22nd.
Part # 83512011779RD
Save 7%
$327.99
$353.93
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Caliper Pistons:
Six
Rotor Thickness:
1.25"
Material Type:
Aluminum
Finish:
Powder Coated
Bore Size:
1.62"
Color:
Red
Centerline of Holes:
5.98"
Thread Pitch:
1/8-27 NPT
Rotor Diameter:
14 Inch
Caliper Mounting Type:
Radial
Mounting Side:
Left Hand
Bore 2 Size:
1.12"
Bore 3 Size:
1.12"
Total Piston Area:
4.04 sq. in.
Mount Hole Size:
0.39"
Mounted Height:
1.45"
Pad Area:
8.20 sq. in.
Pad Volume:
3.80 cu. in.
GTIN Code:
889545002218

Info

The Forged Narrow Superlite 6R (FNSL6R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications. The key to the superior performance of the FNSL6R comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer generated solid modeling and FEA stress analysis technology. The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body. A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The standard FNSL6R calipers feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. Calipers can be upgraded with Wilwood's exclusive Thermlock pistons. This multi-part piston design creates a highly efficient thermal barrier to further reduce heat transfer from the pads to caliper body, seals, and fluid. Cooler temperatures translate to longer service life and less chance for heat induced pedal fade. In addition, each FNSL6R is equipped with SRS bridge plates. SRS plates eliminate all bridge wear caused by pad gouging and extend the service life of the caliper. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens the harmonic vibrations that contribute to pad squeal. Two piece bleed screws on each end and internal fluid crossovers prevent damage from track debris and other potential damage sources. High temperature, square faced bore seals provide the largest possible sealing area and controlled piston retraction on release. The full range of Wilwood pad compounds is available to match the brake response and heat range of any competition or sports driving application.
Some parts are not legal for use in California or other states with similar laws/regulations
