Product Summary

Oval Track Cars, Six Caliper Pistons, Forged Aluminum

    Key Specs

    MFG. Part #120-11778-RD
    Caliper PistonsSix
    Material TypeForged Aluminum

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

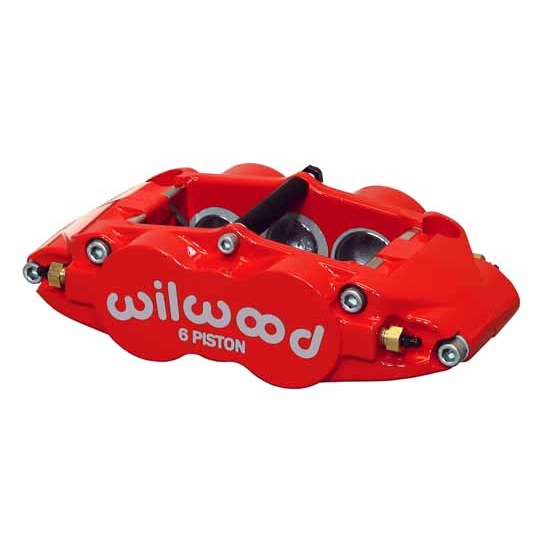

    Wilwood 120-11778-RD Details

    The Forged Narrow Superlite 6R (FNSL6R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications. The key to the superior performance of the FNSL6R comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer generated solid modeling and FEA stress analysis technology. The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body. A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The standard FNSL6R calipers feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. Calipers can be upgraded with Wilwood's exclusive Thermlock pistons. This multi-part piston design creates a highly efficient thermal barrier to further reduce heat transfer from the pads to caliper body, seals, and fluid. Cooler temperatures translate to longer service life and less chance for heat induced pedal fade. In addition, each FNSL6R is equipped with SRS bridge plates. SRS plates eliminate all bridge wear caused by pad gouging and extend the service life of the caliper. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens the harmonic vibrations that contribute to pad squeal. Two piece bleed screws on each end and internal fluid crossovers prevent damage from track debris and other potential damage sources. High temperature, square faced bore seals provide the largest possible sealing area and controlled piston retraction on release. The full range of Wilwood pad compounds is available to match the brake response and heat range of any competition or sports driving application.

    Wilwood 120-11778-RD Specifications

    MFG. Part #120-11778-RD
    Caliper PistonsSix
    Material TypeForged Aluminum
    Speedway Motors Catalog Part #835-12011778RD
    Rotor Thickness1.25"
    FinishPowder Coated
    Rotor Diameter14 Inch
    Mounting SideRight Hand
    Bore Size1.62"
    Caliper Mounting TypeRadial
    Centerline of Holes5.98"
    Thread Pitch1/8-27 NPT
    Bore 2 Size1.12"
    Bore 3 Size1.12"
    Total Piston Area4.04 sq. in.
    Mount Hole Size0.39"
    Mounted Height1.45"
    Pad Area8.20 sq. in.
    Pad Volume3.80 cu. in.
    GTIN Code889545002188
