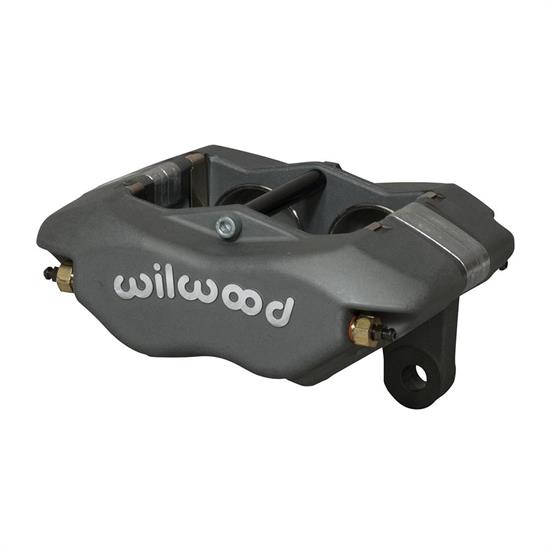

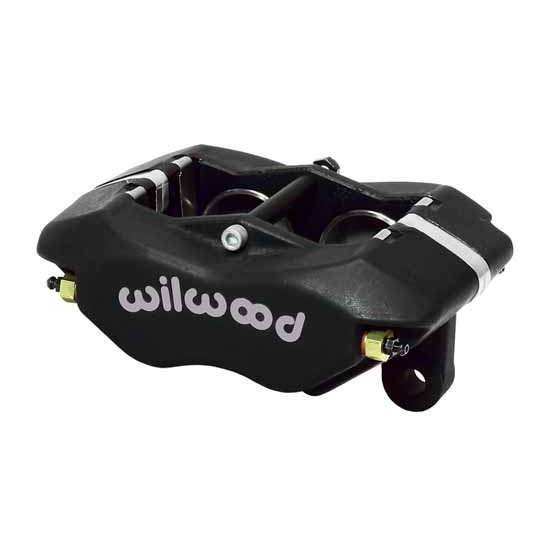

Wilwood 120-11578 FNDL Caliper, 3.50 Inch Mount, 1.12 Piston/ .81 Disc

#83512011578

Wilwood 120-11578 FNDL Caliper, 3.50 Inch Mount, 1.12 Piston/ .81 Disc

Name: Wilwood 120-11578 FNDL Caliper, 3.50 Inch Mount, 1.12 Piston/ .81 Disc
Brand: Wilwood
SKU: 83512011578
Price: 195.58 USD
Availability: InStock

Write a Review

Ask a Question

$195.58

/each

Factory Shipped

$204.09

Save $8.51

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Four Caliper Pistons, 1.12" Bore Size

See more details

Key Specs

MFG. Part #	120-11578
Caliper Pistons	Four
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-11578 Details

Wilwood's new Forged Narrow Mount Dynalite (FNDL) calipers are ideal for and widely used in many competition applications including late models,modifieds, sprints, off road and road racing. Computer generated design and stress analysis technology, is the latest innovation from Wilwood providing substantial improvements in strength and performance over all comparable caliper models.Forged Narrow Mount Dynalites are the strongest calipers in the class. FNDL calipers are a direct replacement for all previous Wilwood NDL's and similar competitive brands with 3.50" centered mounting tabs. A total of five bolts provide superior bridge strength and positive retention of the top loaded 7816 or 7216 type brake pads. The full range of PolyMatrix pad compounds is available to match the brake response and heat range requirements of any competition application. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Narrow Mount Dynalite to outperform all existing styles of this popular caliper size. The superior strength of this innovative design is combined with proven performance features from Wilwood's earlier designs. Each caliper is equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking. Other standard Wilwood features include high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right, or left position. To round out the package, FNDL calipers are finished in Wilwood's exclusive Black Anodized coating for long lasting protection in high heat environments. Polished units are also available in select piston sizes and rotor widths.

Wilwood 120-11578 Specifications

KEY SPECS
MFG. Part #	120-11578
Brand	Wilwood
Caliper Pistons	Four
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No
Material Type	Aluminum

GENERAL
Piston Diameter	1.12"
Caliper Material Type	Aluminum
Caliper Color	Gray
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Lug
Rotor Diameter	12.72 Inch
Mounting Side	Universal
Bore Size	1.12"
Color	Gray
Centerline of Holes	3.50"
Thread Pitch	1/8-27 NPT
Rotor Thickness	0.81"
Finish	Type III Anodized
Bore 2 Size	1.12"
Total Piston Area	1.98 sq. in.
Mount Hole Size	0.45"
Mounted Height	2.85"
Pad Area	6.36 sq. in.
Pad Volume	3.00 cu. in.
GTIN Code	889545001600
Notes	Will fit 11.750 in. to 12.720 in. diameter rotors.
Logo	Wilwood
