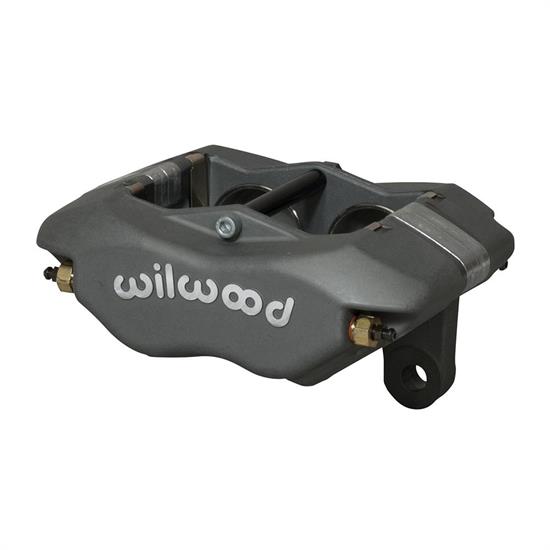

Wilwood 120-11572 Forged Narrow Dynalite Caliper 1.75 In Pis .81 In Ro
Wilwood 120-11572 Forged Narrow Dynalite Caliper 1.75 In Pis .81 In Ro

Wilwood 120-11572 Forged Narrow Dynalite Caliper 1.75 In Pis .81 In Ro

Universal Fit, Four Caliper Pistons, 1.75" Piston Diameter, 0.81" Rotor Thickness, Gray

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Store Pickup Availability
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-11572 Forged Narrow Dynalite Caliper 1.75 In Pis .81 In Ro
Wilwood 120-11572 Forged Narrow Dynalite Caliper 1.75 In Pis .81 In Ro
Wilwood 120-11572 Forged Narrow Dynalite Caliper 1.75 In Pis .81 In Ro
Wilwood 120-11572 Forged Narrow Dynalite Caliper 1.75 In Pis .81 In Ro
Zoomed In Image
Part # 83511572
Call to Order
Add to Buildlist
Videos & Articles


Caliper Pistons:
Piston Diameter:
Rotor Thickness:
Material Type:
Forged Aluminum
Type III Anodized
Rotor Diameter:
12.72 Inch
Bore Size:
Centerline of Holes:
Overall Length:
MFG. Part #:
GTIN Code:
Sold in Quantity:


Wilwoods new Forged Narrow Mount Dynalite (FNDL) calipers are ideal for and widely used in many competition applications including late models,modifieds, sprints, off road and road racing. Computer generated design and stress analysis technology, is the latest innovation from Wilwood providing substantial improvements in strength and performance over all comparable caliper models.

Forged Narrow Mount Dynalites are the strongest calipers in the class. FNDL calipers are a direct replacement for all previous Wilwood NDL’s and similar competitive brands with 3.50" centered mounting tabs. A total of five bolts provide superior bridge strength and positive retention of the top loaded 7816 or 7216 type brake pads. The full range of PolyMatrix pad compounds is available to match the brake response and heat range requirements of any competition application.

  • Strongest calipers in the class
  • 3.50" centered mounting tabs
  • Superior bridge strength and positive retention

83511572 Specs (GIF)

Wilwood FNDC Product Data Sheet (PDF)

Item Details

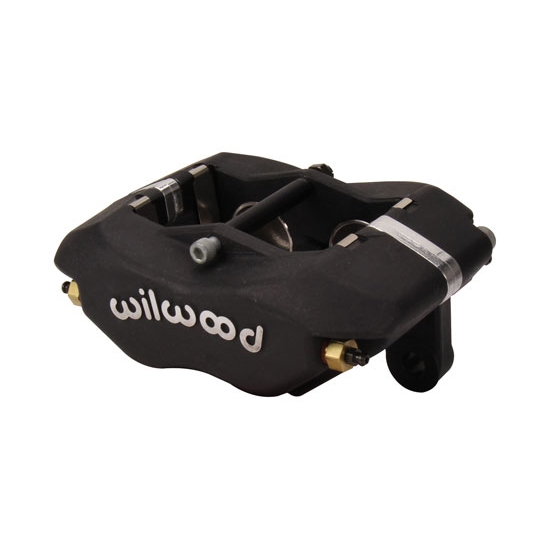

Black Anodized


The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Narrow Mount Dynalite to outperform all existing styles of this popular caliper size.

The superior strength of this innovative design is combined with proven performance features from Wilwood's earlier designs. Each caliper is equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking. Other standard Wilwood features include high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right, or left position. To round out the package, FNDL calipers are finished in Wilwood's exclusive Black Anodized coating for long lasting protection in high heat environments. Polished units are also available in select piston sizes and rotor widths.


  • Pistons:
    • Count: 4
    • Area: 4.80"
    • Type: Stainless
  • Rotor Dimensions:
    • Width: .810"
    • Diameter: 12.72"
  • Pad Dimensions:
    • Area: 6.36"
    • Volume: 3"
  • Mounting:
    • Mount Center: 3.5"
    • Mount Type: Lug
    • Mount Side: Universal
  • Duty Rating and Material:
    • Aluminum
    • Weight: 4.1lbs
  • Finish:
    • Black Anodized
