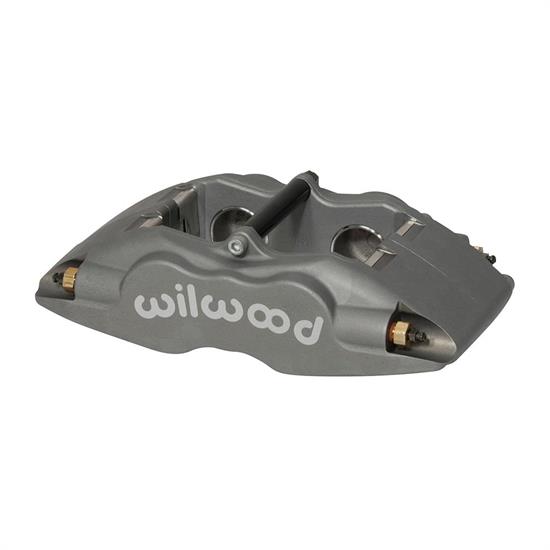

Wilwood 120-11136 Forged Superlite Internal Caliper, 1.75 / 1.25 Inch
Wilwood 120-11136 Forged Superlite Internal Caliper, 1.75 / 1.25 Inch
Wilwood

|

#83512011136

Wilwood 120-11136 Forged Superlite Internal Caliper, 1.75 / 1.25 Inch

  • Constructed from forged aluminum and has a Type III gray anodized finish
  • Will accommodate rotors measuring up to 13.06" in diameter and 1.25" thick
  • New design features increased strength and improved fluid displacement
See More

$253.63

/each

In Stock

$264.65

Save $11.02


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Four Caliper Pistons, Fittings Included

  • Constructed from forged aluminum and has a Type III gray anodized finish
  • Will accommodate rotors measuring up to 13.06" in diameter and 1.25" thick
  • New design features increased strength and improved fluid displacement
  • Has a1 /8" npt inlet and 3.50" mounting centers
  • Overall length of the piston measures 9-1/2" and has a 1-3/4" diameter
See more details

Key Specs

MFG. Part #120-11136
Caliper PistonsFour
Parking Brake ProvisionNo
Fittings IncludedYes
Brake Pads IncludedNo
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-11136 Details

New forged design features increased strength and improved fluid displacement. Four-piston design for 11.75" X 1.25" rotors. 1/8" npt inlet, 3.50" mounting centers.

Charts

Wilwood 120-11136 Specifications

KEY SPECS
MFG. Part #120-11136
BrandWilwood
Caliper PistonsFour
Parking Brake ProvisionNo
Fittings IncludedYes
Brake Pads IncludedNo
Material TypeForged Aluminum
GENERAL
Piston Diameter1.75"
Caliper Material TypeAluminum
Caliper ColorGray
Bracket IncludedNo
Caliper Mounting TypeLug
Sold in QuantityEach
Rotor Diameter13.06 Inch
Mounting SideUniversal
Bore Size1.75"
ColorGray
Centerline of Holes3.50"
Overall Length9.50"
Thread Pitch1/8-27 NPT
Rotor Thickness1.25"
FinishType III Anodized
Bore 2 Size1.75"
Total Piston Area4.80 sq. in.
Mount Hole Size0.45"
Mounted Height2.85"
Pad Area8.20 sq. in.
Pad Volume4.90 cu. in.
GTIN Code889545001327
LogoWilwood

Ratings & Reviews

5

1 Review

Write A Review

5

1 reviews

5

1

4

0

3

0

2

0

1

0

Filter by Ratings

first time I put brakes on a off road buggy, first hydralics

5.0

9 years ago

Jim Retired

miami fla 33155

Verified

was hard to install du to how I installed it, works well was easy to get working

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

1 Question • 1 Answer

i have a mustang 2 front end with 5.5" mounting holes do you have a replacement caliper

by mojo

• 13 years ago

1 answer

View Answer

1 of 1 questions shown
