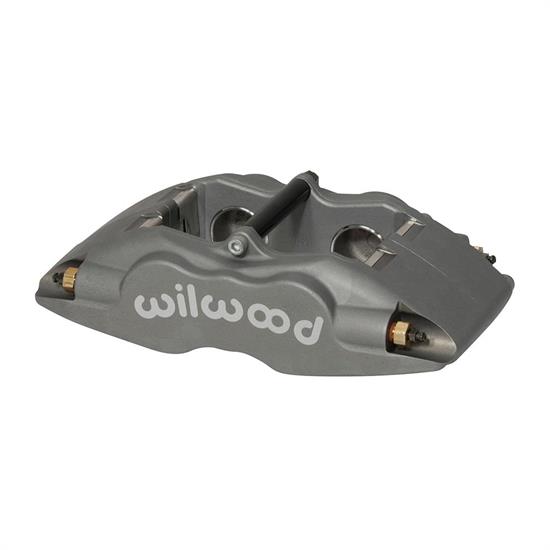

Wilwood 120-11134 Forged Superlite Internal Caliper, 1.75 / .81 Inch
Wilwood 120-11134 Forged Superlite Internal Caliper, 1.75 / .81 Inch
Sprint Car, Four Caliper Pistons, 1.75" Piston Diameter, 0.81" Rotor Thickness, Forged Aluminum
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select Vehicle
Wilwood 120-11134 Forged Superlite Internal Caliper, 1.75 / .81 Inch
X
Part # 83512011134
$174.95
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Designed for increased strength and improved fluid displacement
- Features a four-piston design for 11.75" X .810" thick rotors
- Has an integrated 1/8" npt inlet
- Mounting centers measures 3.5" apart
- Forged aluminum construction has a type III anodized finish for enhanced corrosion resistance
Details
Caliper Pistons:
Four
Piston Diameter:
1.75"
Rotor Thickness:
0.81"
Material Type:
Forged Aluminum
Finish:
Type III Anodized
Rotor Diameter:
13.06 Inch
Mounting Side:
Universal
Bore Size:
1.75"
Caliper Mounting Type:
Lug
Color:
Gray
Centerline of Holes:
3.50"
Overall Length:
9.50"
Thread Pitch:
1/8-27 NPT
Bore 2 Size:
1.75"
Total Piston Area:
4.80 sq. in.
Mount Hole Size:
0.45"
Mounted Height:
2.85"
Pad Area:
8.20 sq. in.
Pad Volume:
4.90 cu. in.
MFG. Part #:
120-11134
GTIN Code:
889545001297
Sold in Quantity:
Each
Info
New forged design features increased strength and improved fluid displacement. Four-piston design for 11.75" X .810" thick rotors. 1/8" npt inlet, 3.50" mounting centers.
Wilwood Spec Sheet (Link)
Item Details
Rotor Width .810"Important Messages
