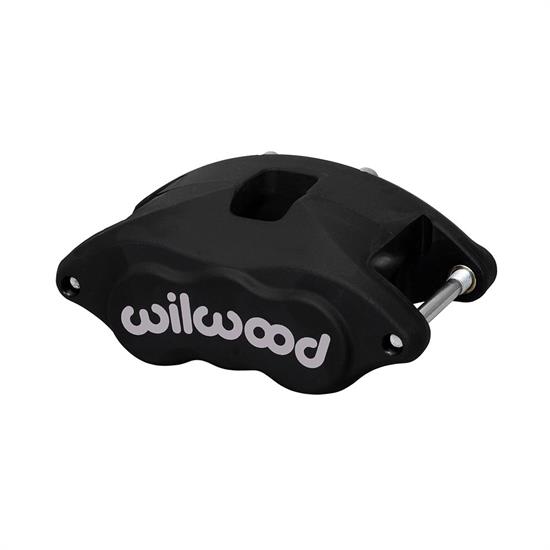

Wilwood 120-10937-BK D52 Dual Piston Floater Brake Caliper, Black

#83512010937BK

Wilwood 120-10937-BK D52 Dual Piston Floater Brake Caliper, Black

Name: Wilwood 120-10937-BK D52 Dual Piston Floater Brake Caliper, Black
Brand: Wilwood
SKU: 83512010937BK
Price: 222.45 USD
Availability: InStock

Write a Review

1 Question

Color:

Black

GrayRed

$222.45

/each

Factory Shipped

$232.11

Save $9.66

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Two Caliper Pistons, 2" Bore Size, Black

See more details

Key Specs

MFG. Part #	120-10937-BK
Caliper Pistons	Two
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-10937-BK Details

The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00 piston provide 6.28 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.

Wilwood 120-10937-BK Specifications

KEY SPECS
MFG. Part #	120-10937-BK
Brand	Wilwood
Caliper Pistons	Two
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No
Material Type	Aluminum

GENERAL
Piston Diameter	2.00"
Caliper Material Type	Aluminum
Caliper Color	Black
Bracket Included	No
Caliper Mounting Type	Floating
Sold in Quantity	Each
Rotor Diameter	12.19 Inch
Mounting Side	Universal
Bore Size	2"
Color	Black
Centerline of Holes	7.06"
Thread Pitch	7/16"-20
Rotor Thickness	1.04"
Finish	Powder Coated
Bore 2 Size	2.00"
Total Piston Area	6.28 sq. in.
Mount Hole Size	0.69"
Mounted Height	0.77"
Pad Area	10 sq. in.
Pad Volume	3.90 cu. in.
GTIN Code	889545001075
Notes	Fits GM vehicles from 1968-96 that have factory D52 single piston calipers. The caliper inlet port is threaded for use with a 7/16-20 banjo bolt or a line adapter using crush washers as a seal. The OE rubber lines can be used from any vehicle equipped with a 7/16-20 banjo. For later model vehicles that were originally equipped with metric connections, a new line kit will be required.
Logo	Wilwood

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

Can these calipers be used to replace the calipers in your kit 91031958 ? I am planning on using your spindles and 91031958 disc brake kit for a drum disc conversion on a 67 chevelle . These calipers would top it off nicely . Do you have a kit avilabe with these options combined ?

by Rollin

• 11 years ago

1 answer

View Answer

1 of 1 questions shown
