#83512010936RD

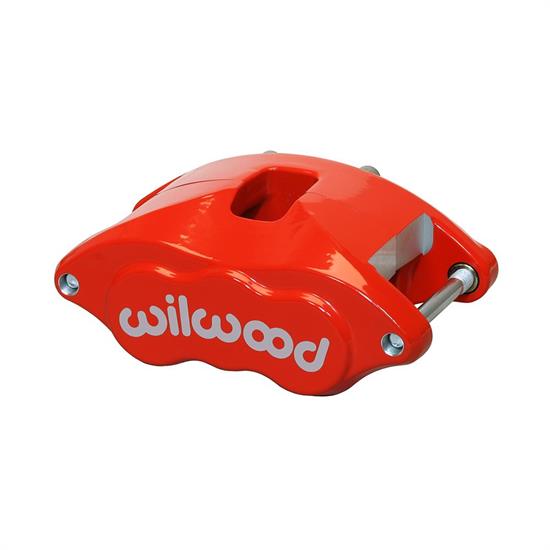

Wilwood 120-10936-RD D52 Dual Piston Floater Caliper, 2.00 / 1.28 Inch
$222.45
/each
In Stock
$232.11
Save $9.66
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#83512010936RD
$222.45
/each
In Stock
$232.11
Save $9.66
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 120-10936-RD |
| Caliper Pistons | Two |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 120-10936-RD |
| Brand | Wilwood |
| Caliper Pistons | Two |
| Parking Brake Provision | No |
| Fittings Included | No |
| Brake Pads Included | No |
| Material Type | Aluminum |
| GENERAL | |
| Piston Diameter | 2.00" |
| Caliper Material Type | Aluminum |
| Caliper Color | Red |
| Bracket Included | No |
| Caliper Mounting Type | Floating |
| Rotor Diameter | 12.19 Inch |
| Mounting Side | Universal |
| Bore Size | 2" |
| Color | Red |
| Centerline of Holes | 7.06" |
| Thread Pitch | 7/16"-20 |
| Rotor Thickness | 1.28" |
| Finish | Powder Coated |
| Bore 2 Size | 2.00" |
| Total Piston Area | 6.28 sq. in. |
| Mount Hole Size | 0.69" |
| Mounted Height | 0.77" |
| Pad Area | 10 sq. in. |
| Pad Volume | 3.90 cu. in. |
| GTIN Code | 889545001051 |
| Notes | Fits GM vehicles from 1968-96 that have factory D52 single piston calipers. The caliper inlet port is threaded for use with a 7/16-20 banjo bolt or a line adapter using crush washers as a seal. The OE rubber lines can be used from any vehicle equipped with a 7/16-20 banjo. For later model vehicles that were originally equipped with metric connections, a new line kit will be required. |
| Logo | Wilwood |
