Product Summary

Universal Fit, One Caliper Pistons, 1.62" Bore Size

    Key Specs

    MFG. Part #120-10113-RD
    Caliper PistonsOne

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

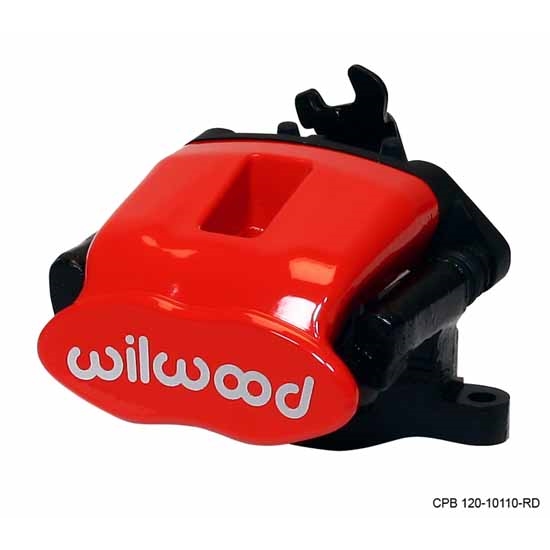

    Wilwood 120-10113-RD Details

    Wilwood's Combination Parking Brake (CPB) Hydra-Mechanical Caliper uses hydraulic pressure for stopping and a mechanical locking mechanism for a parking brake. This redesigned unit provides new options for drum brake conversions and disc upgrades on rear axles that are not conducive to internal shoe systems. This caliper, when matched with the correctly proportionate rotor diameter, provides balanced bias and brake performance for use in conjunction with front wheel brake upgrades. The CPB is a single piston floating design that attaches to a fixed radial mount bracket. The floating mount allows the caliper to maintain perfect alignment when the cable actuated mechanical parking brake lock is engaged and then released. The floating mount also keeps the caliper in correct alignment over the disc and prevents excessive pad knock-back on c-clip rear axles with measurable side play. As the pads wear, the caliper remains centered over the disc. Radial mounting provides nearly unlimited attachment options. Axle flange brackets can be configured to mount the caliper at any height within the compatible rotor diameter range, or lateral position relative the hat and rotor offset. The caliper is compatible with rotor diameters from 11.00" to 13.00" and is available in two models for either .81" or 1.00" width discs. The parking brake lock is cable actuated. Connections are made with common cable ends that use a 1/2 cable housing end on the stop bracket, and a 1/8" to 9/64" cable with a crimped or welded ball end. The caliper will accept the OE cable on some vehicles. For other vehicles, new cable ends can be ordered to adapt the caliper to the vehicle's original cable system. For custom installations, aftermarket hand brake kit suppliers can easily configure the cable with the correct attachment end.

    Wilwood 120-10113-RD Specifications

    MFG. Part #120-10113-RD
    Caliper PistonsOne
    Caliper Mounting TypeRadial
    Rotor Diameter13 Inch
    Mounting SideRight Hand
    Bore Size1.62"
    Centerline of Holes5.98"
    Thread PitchM10 x 1.00
    Rotor Thickness0.81"
    FinishPowder Coated
    Material TypeAluminum
    Total Piston Area2.06 sq. in.
    Mount Hole Size0.39"
    Mounted Height2.08"
    Pad Area4.00 sq. in.
    Pad Volume1.50 cu. in.
    GTIN Code889545000337
