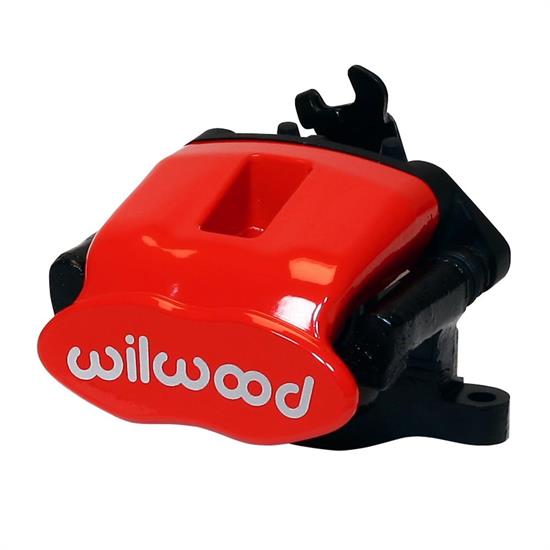

Wilwood 120-10113-13-RD Combination Parking Brake
Wilwood 120-10113-13-RD Combination Parking Brake

Wilwood 120-10113-13-RD Combination Parking Brake

Universal Fit, One Caliper Pistons, 0.81" Rotor Thickness, Aluminum/Steel, Red Powdercoated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 120-10113-13-RD Combination Parking Brake
Wilwood 120-10113-13-RD Combination Parking Brake
Wilwood 120-10113-13-RD Combination Parking Brake
X
Wilwood 120-10113-13-RD Combination Parking Brake
Zoomed In Image
We estimate this item will ship on or before April 29th.
Part # 8351201011313RD
$239.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Caliper Pistons:
One
Rotor Thickness:
0.81"
Material Type:
Aluminum/Steel
Finish:
Red Powdercoated
Rotor Diameter:
13 Inch
Color:
Red
Total Piston Area:
2.06 sq. in.
Pad Area:
4.00 sq. in.
Pad Volume:
1.50 cu. in.
Mount Type:
Radial
Piston Type:
Steel
MFG. Part #:
120-10113-13-RD
GTIN Code:
889545078589

Info

Combination Parking Brake

Wilwood's Combination Parking Brake (CPB) Hydra-Mechanical Caliper uses hydraulic pressure for stopping and a mechanical locking mechanism for a parking brake. This redesigned unit provides new options for drum brake conversions and disc upgrades on rear axles that are not conducive to internal shoe systems. This caliper, when matched with the correctly proportionate rotor diameter, provides balanced bias and brake performance for use in conjunction with front wheel brake upgrades.

The CPB is a single piston floating design that attaches to a fixed radial mount bracket. The floating mount allows the caliper to maintain perfect alignment when the cable actuated mechanical parking brake lock is engaged and then released. The floating mount also keeps the caliper in correct alignment over the disc and prevents excessive pad knock-back on c-clip rear axles with measurable side play. As the pads wear, the caliper remains centered over the disc. Radial mounting provides nearly unlimited attachment options. Axle flange brackets can be configured to mount the caliper at any height within the compatible rotor diameter range, or lateral position relative the hat and rotor offset. The caliper is compatible with rotor diameters from 11.00" to 13.00" and is available in two models for either .81" or 1.00" width discs.

The parking brake lock is cable actuated. Connections are made with common cable ends that use a 1/2” cable housing end on the stop bracket, and a 1/8" to 9/64" cable with a crimped or welded ball end. The caliper will accept the OE cable on some vehicles. For other vehicles, new cable ends can be ordered to adapt the caliper to the vehicle's original cable system. For custom installations, aftermarket hand brake kit suppliers can easily configure the cable with the correct attachment end.

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 6 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
