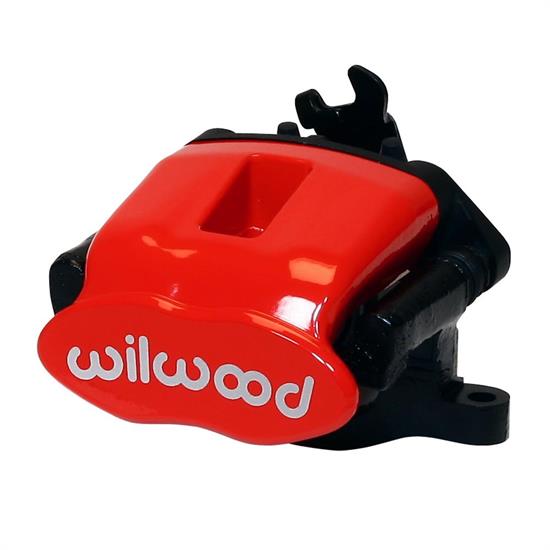

Wilwood 120-10112-RD Combo Parking Brake LH Caliper, 41mm / .81 Disc

#83512010112RD

Wilwood 120-10112-RD Combo Parking Brake LH Caliper, 41mm / .81 Disc

Name: Wilwood 120-10112-RD Combo Parking Brake LH Caliper, 41mm / .81 Disc
Brand: Wilwood
SKU: 83512010112RD
Price: 315.52 USD
Availability: InStock

Write a Review

1 Question

Color:

Red

Black

$315.52

/each

Factory Shipped

$329.24

Save $13.72

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Two Caliper Pistons, 1.62" Bore Size

See more details

Key Specs

Caliper Pistons	Two
Fitting Attachment 1	Female Threads
Parking Brake Provision	Yes
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-10112-RD Details

Wilwood's Combination Parking Brake (CPB) Hydra-Mechanical Caliper uses hydraulic pressure for stopping and a mechanical locking mechanism for a parking brake. This redesigned unit provides new options for drum brake conversions and disc upgrades on rear axles that are not conducive to internal shoe systems. This caliper, when matched with the correctly proportionate rotor diameter, provides balanced bias and brake performance for use in conjunction with front wheel brake upgrades. The CPB is a single piston floating design that attaches to a fixed radial mount bracket. The floating mount allows the caliper to maintain perfect alignment when the cable actuated mechanical parking brake lock is engaged and then released. The floating mount also keeps the caliper in correct alignment over the disc and prevents excessive pad knock-back on c-clip rear axles with measurable side play. As the pads wear, the caliper remains centered over the disc. Radial mounting provides nearly unlimited attachment options. Axle flange brackets can be configured to mount the caliper at any height within the compatible rotor diameter range, or lateral position relative the hat and rotor offset. The caliper is compatible with rotor diameters from 11.00" to 13.00" and is available in two models for either .81" or 1.00" width discs. The parking brake lock is cable actuated. Connections are made with common cable ends that use a 1/2 cable housing end on the stop bracket, and a 1/8" to 9/64" cable with a crimped or welded ball end. The caliper will accept the OE cable on some vehicles. For other vehicles, new cable ends can be ordered to adapt the caliper to the vehicle's original cable system. For custom installations, aftermarket hand brake kit suppliers can easily configure the cable with the correct attachment end.

Wilwood 120-10112-RD Specifications

KEY SPECS
MFG. Part #	120-10112-RD
Brand	Wilwood
Caliper Pistons	Two
Fitting Attachment 1	Female Threads
Parking Brake Provision	Yes
Fittings Included	No
Brake Pads Included	No
Material Type	Aluminum

GENERAL
Piston Diameter	1.61"
Caliper Material Type	Aluminum
Caliper Color	Red
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Radial
Rotor Diameter	13 Inch
Mounting Side	Left Hand
Bore Size	1.62"
Color	Red
Centerline of Holes	5.98"
Thread Pitch	M10 x 1.00
Rotor Thickness	0.81"
Finish	Powder Coated
Total Piston Area	2.06 sq. in.
Mount Hole Size	0.39"
Mounted Height	2.08"
Pad Area	4.00 sq. in.
Pad Volume	1.50 cu. in.
Position	Left
GTIN Code	889545000283
Logo	Wilwood

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 2 Answers

Sort Questions

Compare to Metric E-brake caliper How does this compare to the GM Metric rear caliper in terms of stopping power and pad life, and will this fit inside a 15" wheel?

by Opus

• 11 years ago

2 answers

View Answers

1 of 1 questions shown
