Product Summary

2-10 Fuel Pressure Rating (psi)

    Key Specs

    MFG. Part #WCD891
    BrandWillys Carbs

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

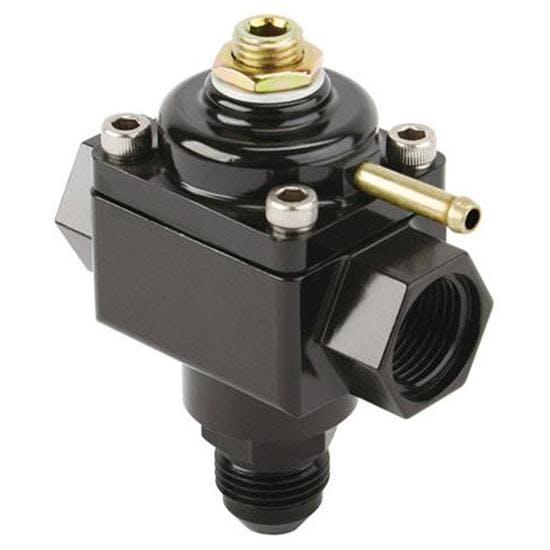

    Willy's alcohol fuel regulator features a special diaphragm that uses engine vacuum to automatically regulate fuel pressure. At idle or deceleration, when manifold vacuum is high, the fuel pressure regulator opens and drops fuel pressure for clean restarts and keeps carburetor from flooding or blubbering in the corner. As the throttle is opened, manifold vacuum drops which closes the fuel pump regulator and raises pressure for proper straightaway fuel mixture.

    This bypass fuel regulator is designed to be used with a piston-style mechanical fuel pump only.  Alcohol regulator has a -8 AN O-ring female inlet port and a -8 AN male return fitting. Requires a fuel return line and vacuum port (base plate or intake manifold) for installation.

    Alcohol regulator provides 10 psi at 4500 RPM and 2-5 psi at idle

    Charts

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #WCD891
    BrandWillys Carbs
    GENERAL
    Fuel Pressure Rating (psi)2-10
    Sold in QuantityEach
