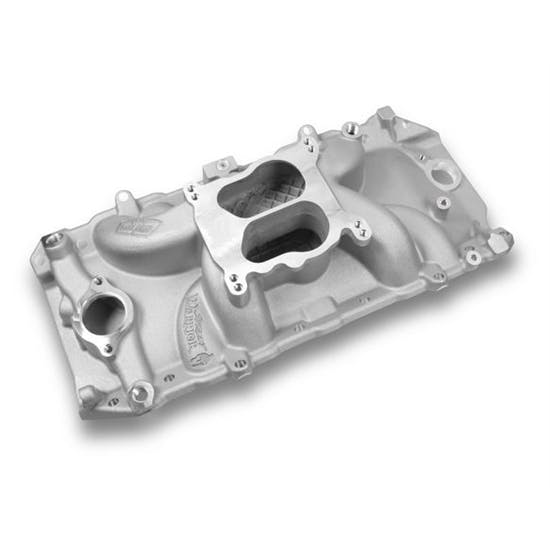

Weiand 8123 Street Warrior Intake Manifold 396-427ci Engines

Name: Weiand 8123 Street Warrior Intake Manifold 396-427ci Engines
Brand: Weiand
SKU: 4258123
Price: 324.95 USD
Availability: InStock

Write a Review

Ask a Question

$324.95

each

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before June 2nd.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Carbureted Fuel System Type, One Carburetor Quantity

See more details

Key Specs

MFG. Part #	8123
Brand	Weiand
Intake Manifold Type	Dual Plane
RPM Range	Idle-5,500
Material Type	Aluminum

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Weiand 8123 Details

Most of the intakes on the market were developed 20+ years ago when typical engines were 396-427 cubic inches. Not so anymore. With the popularity of larger engines, stroker combinations and more efficient cylinder head and cam designs came the need for intake manifolds to support these combinations. Designed with Computational Fluid Dynamics software, the Street Warrior intake rises to the challenge and delivers the performance to conquer the competition! Want maximum horsepower and torque from Today's engines? Choose Street Warrior!

All new optimized design for today™s higher output big block engines
Low rise dual plane design delivering friendly power and torque across the usable RPM range
Permanent mold 319 aluminum construction is precision CNC machined providing lighter castings with better surface finishes
Runner geometry optimized using Computational Fluid Dynamics software for even fuel & air distribution
Universal dual pattern carb flange accepts spread bore (Quadrajets) and square bore carbs
Idle to 5,500 RPM band

Charts

Installation Instructions (PDF)

Guides & Documents

Intake Manifolds Instruction Sheet (4258123)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CARB warning

Weiand 8123 Specifications

KEY SPECS
MFG. Part #	8123
Brand	Weiand
Intake Manifold Type	Dual Plane
RPM Range	Idle-5,500
Material Type	Aluminum

GENERAL
Speedway Motors Catalog Part #	425-8123
Fuel System Type	Carbureted
Carburetor Quantity	One
Carburetor Flange Type	Dual: Square and Spread Bore
Finish	Natural
EGR	No
Intake Section Included	Complete
Overall Height	4.84"
Bolt Hole Pattern	4.250" x 5.625" & 5.160" x 5.625"
GTIN Code	090127661697
