Product Summary

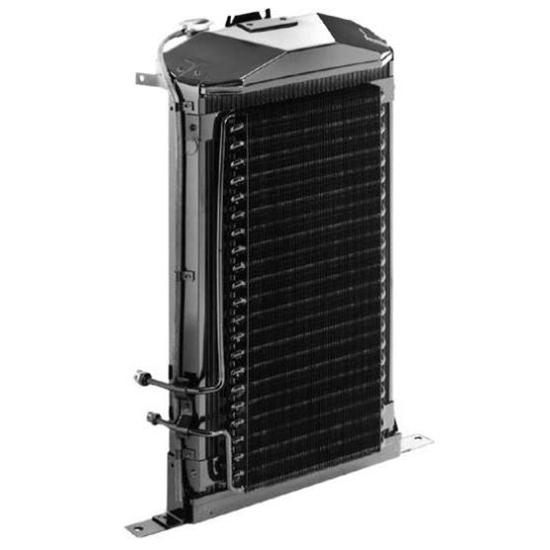

37-39 Ford, Single Pass Radiator Style, Copper/Brass

  • Features a copper core w/ 1-piece brass tanks
  • It uses a 15-18 lb. radiator cap and has a brass drain cock
  • There are vertical tubes every 1/4" and 12 fins per inch of height
  • Includes heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Engineered to be a simple bolt-in install w/ no modifications to grille or grille shell

Key Specs

MFG. Part #Z-AC495-1
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper/Brass
FinishPainted

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install w/ no modifications to grille or grille shell
  • Use Walker Fan Shroud Style E

Ford Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

With A/C Condenser
Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a

Specs


Warranties

This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.

Specifications

KEY SPECS
MFG. Part #Z-AC495-1
BrandWalker Radiator Works
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper/Brass
FinishPainted
GENERAL
Inlet LocationUpper driver side
Outlet LocationLower passenger side
Row Quantity4
Overall Width Range16.00" to 16.99"
Overall Width16.00"
Overall Height Range27.00" to 27.99"
Overall Height27.50"
Overall Thickness6.00"
Core Width Range15.00" to 15.99"
Core Width15.75"
Core Height Range23.00" to 23.99"
Core Height23.13"
Core Thickness2.75"
Cooling FanNot Included
Transmission CoolerYes
Shroud IncludedNo
Filler Neck Height2.38"
Inlet Size1.50
ColorBlack
Fan IncludedNo
Notes1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 3.00" wide mounting feet on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
Sold in QuantityEach
