Product Summary

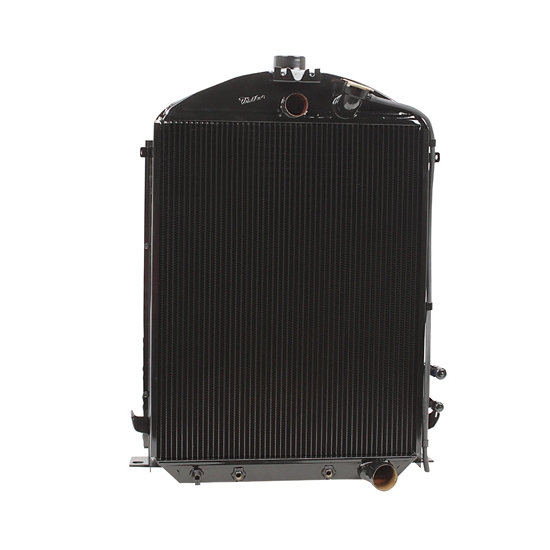

30-31 Ford Model A, Single Pass Radiator Style, Copper

    Key Specs

    MFG. Part #Z-AC487-2
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeCopper/Brass

    Need To Know

    This Product Will Ship Free

    Quick and Easy Returns


    Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

    • Dummy filler neck in OEM location - accepts stock type caps & accessories
    • Works with original, reproduction steel, or fiberglass grille shells
    • Copper core w/ 1-piece brass tanks
    • Vertical tubes every 1/4" and 12 fins per inch of height
    • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
    • Use a 15-18 lb. radiator cap
    • Brass drain cock
    • Use Walker Fan Shroud Style D

    Ford Chassis W/ Chevy Engine Application Chart (GIF)

    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

    Item Details

    With A/C Condenser
    Condenser Fittings: #6 and #8 O-ring design
    Condenser Refrigerant: R-12 or R-134a


    This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.


    MFG. Part #Z-AC487-2
    BrandWalker Radiator Works
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeCopper/Brass
    Inlet LocationCenter
    Outlet LocationLower passenger side
    Row Quantity4
    Overall Width Range18.00" to 18.99"
    Overall Width18.13"
    Overall Height Range27.00" to 27.99"
    Overall Height27.00"
    Overall Thickness4.25"
    Core Width Range17.00" to 17.99"
    Core Width17.88"
    Core Height Range22.00" to 22.99"
    Core Height22.00"
    Core Thickness2.75"
    Cooling FanNot Included
    Transmission CoolerYes
    Shroud IncludedNo
    Filler Neck Height2.38"
    Inlet Size1.50
    Fan IncludedNo
    Notes1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.38" wide mounting feet on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
    Sold in QuantityEach
