Product Summary

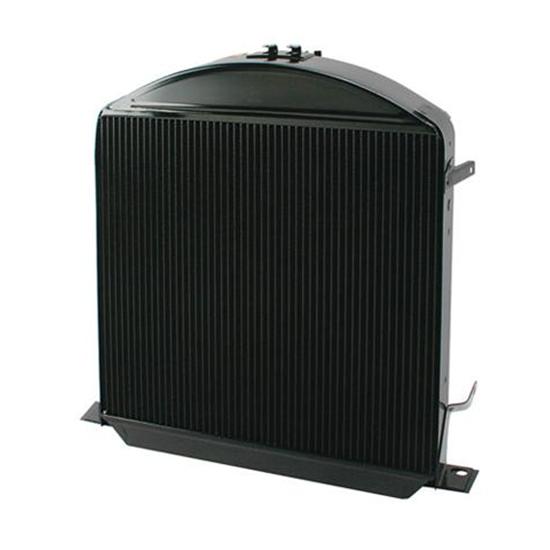

1932 Ford Model B, Single Pass Radiator Style, Painted

  • Engineered to perfectly fit the 1932 Chevy Lo-Boy grille shell and grille insert
  • The standard brass/copper version is the best option for mild small block applications
  • Lower hose is on the passenger's side and the upper is on the driver's side
  • There are 1.38" mounting tabs on both sides
  • Measures 21" in height and is 17.5" wide

Key Specs

MFG. Part #Z-491-2 SPECIAL
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper/Brass
FinishPainted

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

Latest high efficiency core with a 6" chop. Perfect fit with Lo-Boy grille shell and grille insert. The standard brass/copper version is best for mild small blocks.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Application

  • The lower hose is on the passenger's side, the upper hose is on the driver's side
  • Does NOT come with transmission cooler

Specs


Warranties

This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.

Specifications

KEY SPECS
MFG. Part #Z-491-2 SPECIAL
BrandWalker Radiator Works
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper/Brass
FinishPainted
GENERAL
Inlet LocationUpper driver side
Outlet LocationLower passenger side
Row Quantity4
Overall Width Range17.00" to 17.99"
Overall Width17.50"
Overall Height Range21.00" to 21.99"
Overall Height21.00"
Overall Thickness4.25"
Core Width Range17.00" to 17.99"
Core Width17.38"
Core Height Range16.00" to 16.99"
Core Height16.00"
Core Thickness3.00"
Cooling FanNot Included
Transmission CoolerNo
Shroud IncludedNo
Filler Neck Height2.25"
Inlet Size1.50
ColorBlack
Fan IncludedNo
Notes1.38" mounting tabs on both sides.
Sold in QuantityEach
