Product Summary

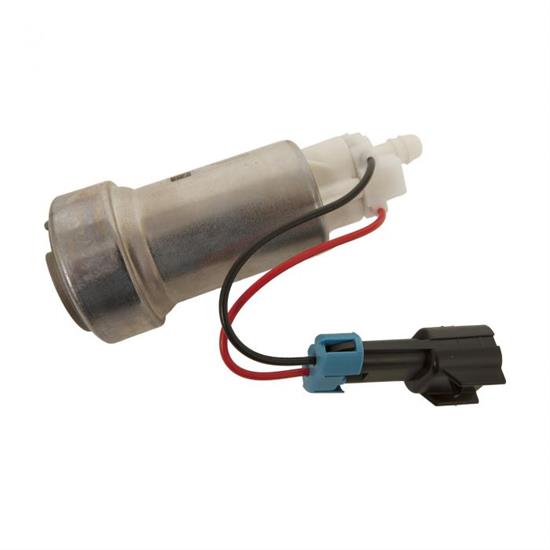

Universal Fit, In Tank Electric Fuel Pump Type

    Key Specs

    MFG. Part #F90000295
    BrandWalbro
    Electric Fuel Pump TypeIn Tank

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Award-winning OE technology

    High-pressure, high-flow performance OEM technology designed and developed for E85 Ethanol

    Dual channel turbine design for maximum efficiency under high pressure and high temperature applications
    Made in USA

    • Award-winning OE technology
    • High-pressure, high-flow performance
    • OEM technology designed and developed for E85
    • Able to operate up to 87 psi total fuel pressure

    All pumping components have been validated to OEM specifications

    The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge.

    This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 20 percent higher than conventional pumps.

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #F90000295
    BrandWalbro
    Electric Fuel Pump TypeIn Tank
    GENERAL
    Free Flow Rate141 GPH / 535 LPH
    Maximum Pressure100 psi
    PSI Flow Rate130 GPH at 40 PSI
    InlineNo
    Fuel System TypeEFI | Carb
    Fuel TypeGasoline | E85
    Electric Fuel Pump Outlet Fitting(s)3/8" Hose Barb
    Voltage13.5 volts
    Horsepower Rating (Naturally Aspirated)900 HP
    Horsepower Rating (Force Induction)800 HP
    FinishNatural
    Fuel Pressure Regulator IncludedNo
    Regulator RequiredYes
    Sending Unit IncludedNo
    Fuel Filter IncludedNo
    Fuel Line IncludedNo
    Clamps IncludedNo
    Gasket(s) IncludedNo
    Wiring Harness IncludedNo
    Mounting Bracket IncludedNo
    Mounting Hardware IncludedNo
    Overall Length131 mm
    Overall Diameter50 mm
    Sold in QuantityEach
    GTIN Code086235592954
