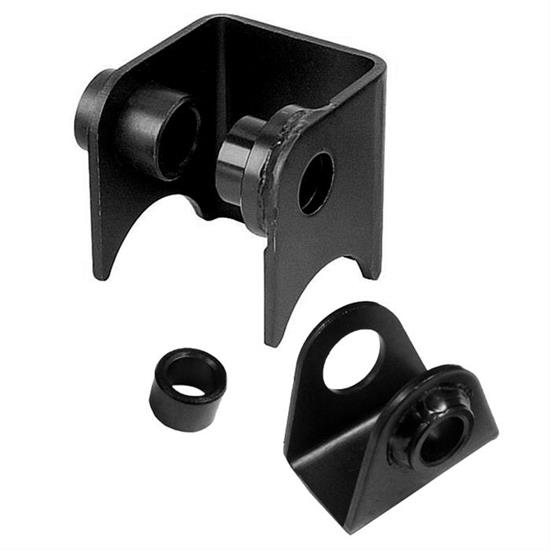

Upper and Lower Mounts for Bearing End Shocks

 Kit Includes:

• (1) Speedway Weld-On Roll Cage Shock Mount
• (1) Speedway Weld-On Lower Mount for Bearing End Shocks

Speedway Weld-On Roll Cage Shock Mount

Weld-on shock mount for bearing end shocks (spherical bearings or heim). Has a 1/2" hole. This bracket is contoured to fit onto 1.5" outside diameter tubing. It can easily be altered to fit on 1.625," 1.750" perhaps even 2" diameter tubing as well. Without modification, this bracket will accept a shock eye with a maximum width of 1". If the installer cuts away part of the support bushing, this bracket would accept a shock eye that is 1.375" wide.

• Contoured to fit onto 1.5" outside diameter tubing
• Can easily be altered to fit on 1.625", 1.750" or even 2" diameter tubing
• Hole Diameter: .50"
• Overall Length: 2.00"
• Overall Width: 1.876"
• Overall Height: 1.861"
• Overall Thickness: .110"

Without modification, this bracket will accept a shock eye with a maximum width of 1". If the installer cuts away part of the support bushing, this bracket would accept a shock eye that is 1.375" wide.

Speedway Weld-On Lower Mount for Bearing End Shocks

Weld-on shock mount for bearing end shocks (spherical bearing or heim). Has a 1/2" hole. Use short pin in place of shock bolt on this bracket. 2" x 1.25" base and Includes bushing sleeve.

• Hole Diameter: 0.50"
• Overall Length: 2.000"
• Overall Width: 1.535"
• Overall Height: 1.644"
• Overall Thickness: 1.04"
