Part # 91603026

Universal Trunk/Hood Latch Assembly Kit

by

|

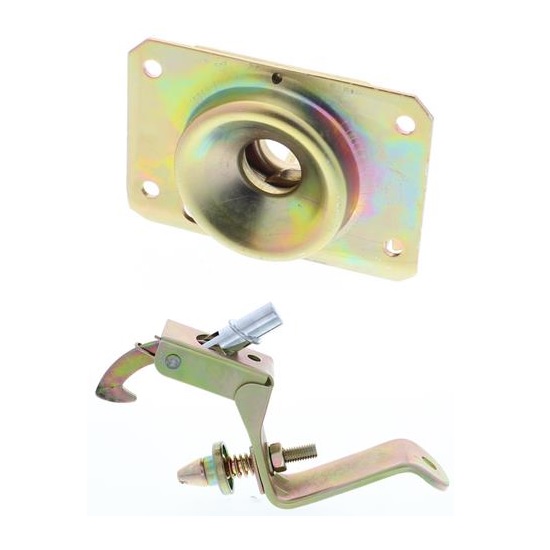

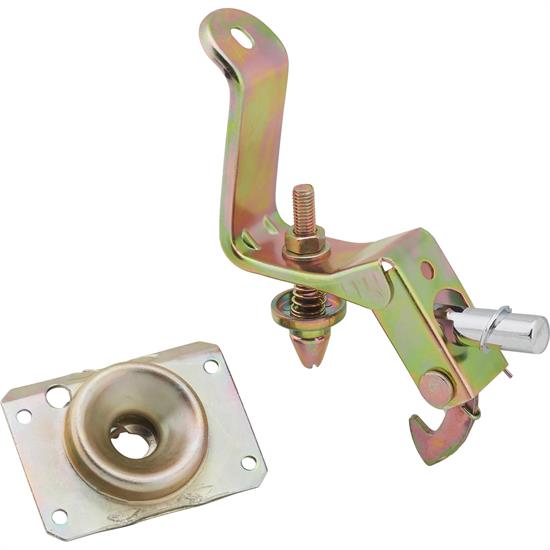

  • Includes both male/female trunk/hood latch assembly
  • Length 3.33", width 2.38", height 1.80"
  • Male pin can be removed from the bracket and attached separately

$43.99

each

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Zinc Plated

  • Includes both male/female trunk/hood latch assembly
  • Length 3.33", width 2.38", height 1.80"
  • Male pin can be removed from the bracket and attached separately
  • Zinc-plated for rust and corrosion prevention
  • Does not include cable

Comes as a Kit

Key Specs

MFG. Part #91603026
BrandSpeedway Motors
FinishZinc Plated

Need To Know

Free Shipping on Orders Over $99

Need help? Call 800.979.0122

Quick and Easy Returns

Details

If you are in the process of custom body design and building - then we have the parts you are going to need. We put together our Universal Trunk/Hood Latch Assemblies to save you time and money when shopping for the parts you will need to build your dreams!

Kit Contains:

  • (1) Speedway Motors Female Trunk/Hood Latch Assembly
  • (1) Speedway Motors Male Trunk/Hood Latch Assembly

Speedway Motors Female Trunk/Hood Latch Assembly

These trunk or hood latch assemblies allow you to use an OEM-type assembly on your car. Most people would mount the female latch in the body and the male pin on the trunk or hood. The male pin can be removed from the bracket and attached separately. The assemblies are cable operated but the cable is not included.

  • Overall Length: 3.33"
  • Overall Width: 2.38"
  • Overall Height: 1.80"
  • Base Length: 2.13"
  • Base Width: 3.38"
  • Mounted Height: .42"
  • Inside Diameter: .65"
  • Bolt Hole Pattern: 2.77" x 1.50"
  • Does NOT include cable

Note-These universal hood or trunk latch components have many applications of which they can be used on. The male pin has a push button for the safety catch release which may be eliminated if desired on a trunk mount application. Mounting plate or bracket for the female is not included and up to the builder for fabrication. The male part may require additional support and mount fabrication on the underside of the deck lid. Cable release required for the female latch and nearly any cable assembly can be used if in the appropriate length.

  1. The 'female' hood/trunk latch assembly (91126110) must be hooked to a cable and adjusted before it will latch. It has a 'failsafe' feature so that it will automatically release if the cable should break.

Speedway Motors Male Trunk/Hood Latch Assembly

These trunk or hood latch assemblies allow you to use an OEM-type assembly on your car. Most people would mount the female latch in the body and the male pin on the trunk or hood. The male pin can be removed from the bracket and attached separately. The assemblies are cable operated but the cable is not included.

  • Overall Length: 5.50"
  • Overall Width: 1.25"
  • Overall Height: 6.00"
  • Centerline of Holes: 4.00"
  • Thread Pitch: 5/16"-18

Note-The 'female' hood/trunk latch assembly (91126110) must be hooked to a cable and adjusted before it will latch. It has a 'failsafe' feature so that it will automatically release if the cable should break.

Specifications

KEY SPECS
MFG. Part #91603026
BrandSpeedway Motors
FinishZinc Plated
GENERAL
Sold in QuantityKit
