Universal Standard Brake Pedal Assembly, T-Bucket
- This standard brake pedal assembly is the same as that featured on our T-Bucket kits and be used for many universal applications
- Features a 1" bore '70s style Ford Mustang master cylinder suitable for disc/drum applications
- Includes brake pedal, standard dual feed master cylinder, push rod, clevis, pedal pad mount bracket
$249.99
/kit
In Stock
$254.46
Save $4.47
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Frame Position, Brake Pedals Included
- This standard brake pedal assembly is the same as that featured on our T-Bucket kits and be used for many universal applications
- Features a 1" bore '70s style Ford Mustang master cylinder suitable for disc/drum applications
- Includes brake pedal, standard dual feed master cylinder, push rod, clevis, pedal pad mount bracket
- No residual valves or proportioning built in but can be added separately
- Pedal pads sold separately, part # 7024852 for stainless seel with rubber insert, part # 9108507 is polished aluminum with rubber insert or part # 91031200 for standard rubber
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9162327 |
| Brand | Speedway Motors |
| Brake System Type | Disc/Drum |
| Reservoir Type | Integral |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9162327 Details
Speedway Motors 9162327 Details

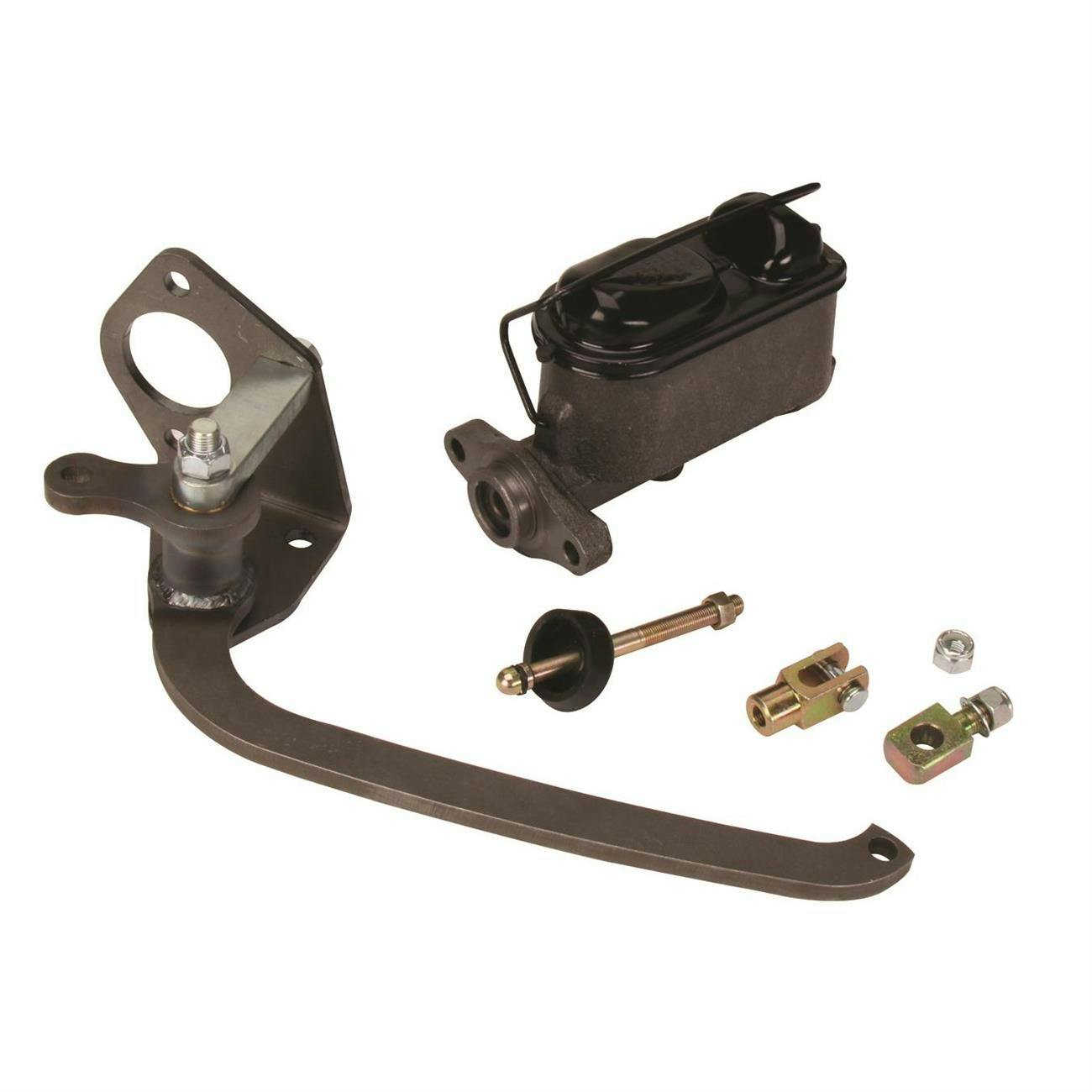

This standard brake pedal assembly is the same as that featured on our T-Bucket kits. It is able to be used for many universal applications.
Includes:
- Brake Pedal
- Standard Dual Feed Master Cylinder
- Push Rod
- Clevis
- Pedal Pad Mount Bracket
Charts
Brake System Builder's Tip (JPG)
Booster Tech Tip (GIF)
Speedway Motors 9162327 Specifications
Speedway Motors 9162327 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9162327 |
| Brand | Speedway Motors |
| Brake System Type | Disc/Drum |
| Reservoir Type | Integral |
| GENERAL | |
| Position | Frame |
| Master Cylinder Mount Type | Reverse |
| Pedals Included | Brake |
| Master Cylinder Count | 1 |
| Outlet Count | Tandem |
| Outlet Fitting | 3/8"-24 IFF |
| Outlet Fitting 2 | 3/8"-24 IFF |
| Master Cylinder Material | Steel |
| Finish | Painted |
| Brake Booster Included | No |
| Balance Bar | No |
| Sold in Quantity | Kit |
Ratings & Reviews
4.8
27 Reviews
Customers appreciate the product for its sturdy construction and reliable performance. They confirm that it fits well and works efficiently, even in customized settings. It's praised for the Mustang master cylinder, ease of installation, and the flexibility of mounting options. The pedal arm and bracket of the unit are plated, enhancing its quality. Some customers expressed they had to make slight adjustments or grind the zinc coating for welding, but overall, they commend the product's durability. Its heavy-duty construction perfect for purposes such as T-bucket builds or rat rod builds earned it recommendations.
Ratings & Reviews
4.8
27 Reviews
Customers appreciate the product for its sturdy construction and reliable performance. They confirm that it fits well and works efficiently, even in customized settings. It's praised for the Mustang master cylinder, ease of installation, and the flexibility of mounting options. The pedal arm and bracket of the unit are plated, enhancing its quality. Some customers expressed they had to make slight adjustments or grind the zinc coating for welding, but overall, they commend the product's durability. Its heavy-duty construction perfect for purposes such as T-bucket builds or rat rod builds earned it recommendations.
4.8
27 reviews
5
24
4
2
3
0
2
0
1
1
Most Liked Positive Review
4.0
Still a great product

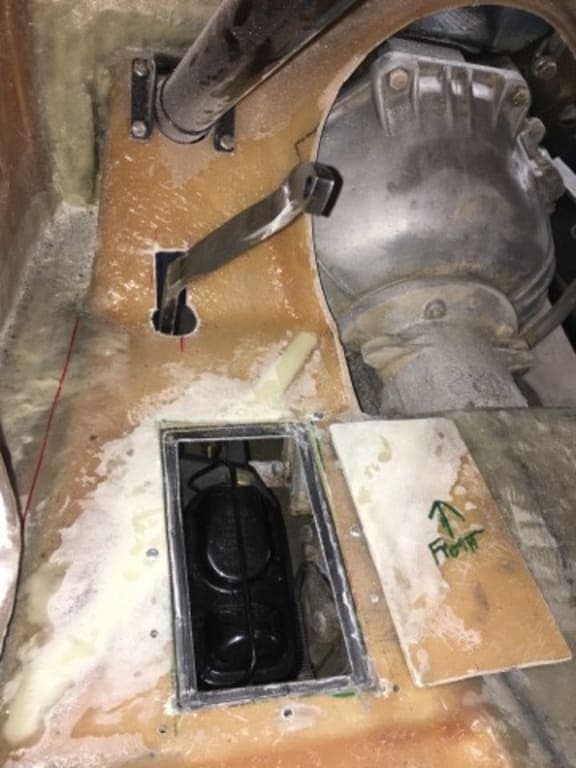

Had to modify it quite a bit to fit in the tight spot available. With the pedal pivot below the floorboards the bottom of the master cylinder hung way below the bottom of the frame and would have been too close to the ground for daily driving. Solid construction made it easy to modify and worked out just fine.
Most Liked Negative Review
1.0
https://www.speedwaymotors.com/Universal-Standard-Brake-Peda
pedal 91631944 will not work on my 23 t bucket. the pedal needs to be lined up with the clevis not 1 3/4 inches to the left. heating and bending it that far will likely break it or weaken it, cutting my floor will not help as the steering column will be in the way. pedal 91631987 was suggested as pedal is lined up with the clevis , I have that pedal to, however that pedal is so huge and such a wild angle that the fire wall would need a slot cut in it to allow it to move properly and that's not going to happen. unfortunately both set ups will have to be returned as neither are going to fit. looks like I am making my own.
Filter by Ratings
Worked great for our 27 T-Roadster
5.0
3 months ago
Simon
Phoenix, Az
Verified
This is a great set up, worked well for our project! Easy to build a frame bracket for. Heavy steel, wont ever bend!!! We had to shorten the pedal length. was easy to cut and weld. Would use this product again.
Would Recommend
I would get thus if i do another project
5.0
a year ago
Bill
San antonio texas
Verified
I used it on ny 1923 t bucket had to make some modification but is working great
Would Recommend
Yes I would
5.0
2 years ago
Mike
Sorrento fl
Verified
Fit great
Would Recommend
Solid braking
5.0
3 years ago
Jerry
Nevada
This master cylinder works as advertised. I have used this master cylinder set up on a bucket for eleven years and 8000 miles without any problem. I had to grind down the push rod a little during installation to keep it from binding up but did not affect the operation. I like that it is a Mustang master cylinder that should be easy to find rebuild parts for. It is well built and expect no problems in the future.
Would Recommend
Great quality
5.0
4 years ago
John P
NC
I was pleased to see that the pedal arm and bracket are plated on this and not just bare steel. The master is seemingly of good quality for a basic unit but perfect for that budget build.
Would Recommend
This was perfect.
5.0
4 years ago
Gary
ohio
Verified
Worked out great.
Would Recommend
Exactly what I needed.
5.0
4 years ago
One twenty Denny
Seattle, WA
Verified
Will work fine in my '48 Anglia. Needed a floor mount brake pedal assembly for my custom brake system.
Would Recommend
Exactly what I needed.
5.0
4 years ago
One twenty Denny
Seattle, WA
Verified
Will work fine in my '48 Anglia. Needed a floor mount brake pedal assembly for my custom brake system.
Would Recommend
I would buy again.
4.0
5 years ago
Gary Smith
Tweed, Ontario, Canada
Verified

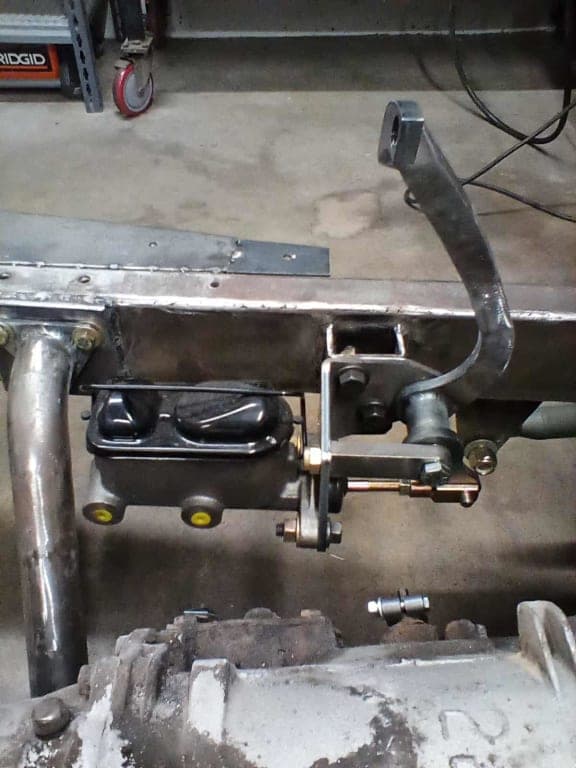

Would be much easier to install if there was a bracket that mounted inside the frame channel to allow flush mounting. As it is I have to make my own.
Would Recommend
Looks like it will work perfectly for my build
5.0
5 years ago
Tiny
Southern Utah
Verified
I made a bracket to mount it outside the frame on my T truck. It would haave been nice to have a reversable mount come with it.
Would Recommend
Showing 10 of 27 reviews
