#91123502

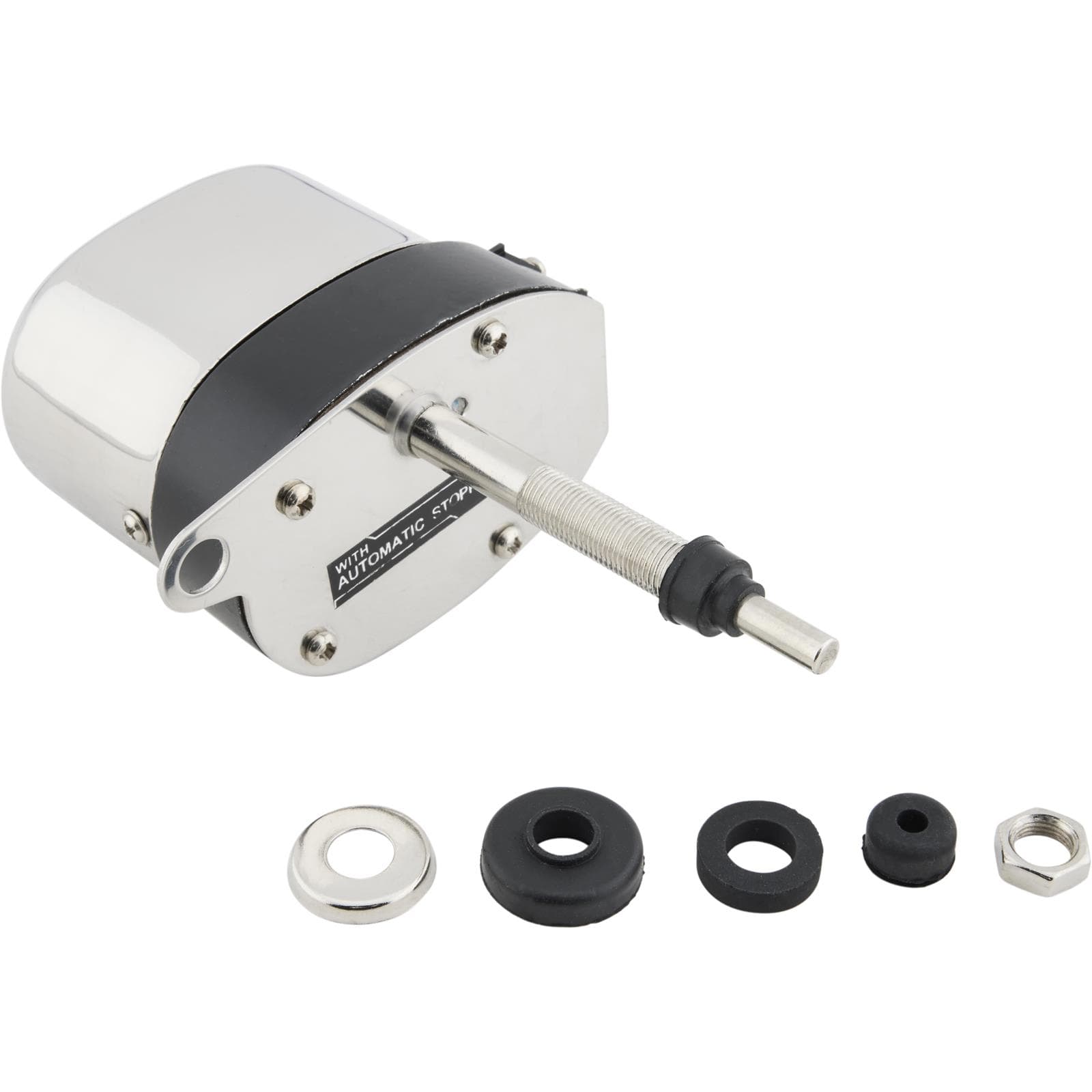

Universal Stainless 12 Volt Electric Windshield Wiper Motor Kit
- Compact and self-contained wiper motor drives one wiper arm and blade
- Stainless steel version uses an external switch (not included) and both return to park automatically when shut off
- 90 degree sweep
$77.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 3.00" Overall Length, 12 volts Voltage
- Compact and self-contained wiper motor drives one wiper arm and blade
- Stainless steel version uses an external switch (not included) and both return to park automatically when shut off
- 90 degree sweep
- Self-park feature for convenience
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91123502 Details
Speedway Motors 91123502 Details
The compact, self-contained windshield wiper motor allows you the freedom to install it the way you see fit and not be limited to where and how the windshield wiper motor can be mounted in your project. Wiper motor features a 90-degree sweep with self-park function and a stout 12-volt motor. Windshield wiper motor kit is supplied with an adjustable wiper arm (# 911-23505) (adjust from 7" to 11") and an 11" cut-to-fit wiper blade (# 911-23506), to further fine tune this kit for your car or truck.
- Universal fitment
- Self-park feature
- 12v electric wiper motor
- 90-degree sweep
- Adjustable wiper arm and cut-to-fit wiper blade (great for chopped tops)
- Compact wiper motor body (2-1/8" H x 3-1/4" W x 3-1/3" D)
- Kit includes (1) wiper motor, (1) wiper arm, (1) wiper blade, (1) wiper arm hardware.
This universal wiper motor kit can be made to work on nearly any application. Designed for flat windshield applications, such as 1920s/1930s/1940s street rods and hot rods (like Model A and Model T), as well as applications such as Jeeps or Broncos. Being fully universal allows the creative, DIY car enthusiast the flexibility needed to install it however they best see fit. Additionally, these wiper motors can be wired together in tandem using an external switch if your project requires a dual wiper system.
The wiper motor is commonly mounted to the header panel above the windshield (pivoting wiper arm allows use with pop-out windshields). Can also be affixed to a round-type windshield frame using optional bracket 91656001.
Replacement wear parts are readily available; the 11" wiper blade or the option for a 9" wiper blade, a replacement adjustable wiper arm, as well as a replacement wiper arm lock-nut for years of reliable service, keeping your vision of the open road crystal clear!
Application
Main housing for the motor is oval in shape with the following dimensions:
- Depth front to rear is 3-1/3"
- Height top to bottom is 2-1/8"
- Width from side to side is 3-1/4"
A mounting tab extends the width an additional 9/16" and has an isolating grommet installed.
- The drive shaft measures 3-1/4"
- Shaft diameter is .235"
- The threaded sleeve around the shaft is 2-1/2" long from the main housing
- Threaded sleeve allows for adjustment for proper spacing to the windshield
- Length of threads covering input shaft is 2.040"
- Length from motor face to end of input shaft is 3.165"
Charts
Speedway Motors 91123502 Specifications
Speedway Motors 91123502 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91123502 |
| Brand | Speedway Motors |
| Voltage | 12 volts |
| GENERAL | |
| Overall Length | 3.00" |
| Overall Width | 2.25" |
| Overall Thickness | 3.25" |
| Shaft Length | 3.165" |
| Shaft Diameter | 0.25" |
| Thread Length | 2.00" |
| Thread Pitch | 9mm - .75 |
| Sold in Quantity | Kit |
| Notes | Overall measurements are for the motor, arm is adjustable 7.50" - 11.75" MOUNTING NUT M9-.75 91123507 |
Ratings & Reviews
4.5
50 Reviews
Customers praised the product for its reasonable price, high quality, and effectiveness. Many appreciated the flexibility and custom fit these wiper motors provided for diverse vehicle models, including tractors, classic cars, and streetrods. Users were able to easily install and wire the wiper. Some customers did highlight drawbacks, such as unclear instructions and a slow sweep speed. However, most found simple solutions or quickly got replacement parts from the manufacturer. Moreover, several customers had positive experiences with this product compared to pricier options and praised its sturdy and durable design. Overall, many users expressed intent to repurchase, citing the product as great value for money.
Ratings & Reviews
4.5
50 Reviews
Customers praised the product for its reasonable price, high quality, and effectiveness. Many appreciated the flexibility and custom fit these wiper motors provided for diverse vehicle models, including tractors, classic cars, and streetrods. Users were able to easily install and wire the wiper. Some customers did highlight drawbacks, such as unclear instructions and a slow sweep speed. However, most found simple solutions or quickly got replacement parts from the manufacturer. Moreover, several customers had positive experiences with this product compared to pricier options and praised its sturdy and durable design. Overall, many users expressed intent to repurchase, citing the product as great value for money.
4.5
50 reviews
5
36
4
5
3
7
2
0
1
2
Most Liked Positive Review
4.0
Standard 1 speed basic wiper.
Replaced same 12 yr old wiper that quit. Was able to use front plate, outer and inner shaft from old motor so I didn't have to cut the shaft. Wiper was too long for my windshield but my old one had been replaced recently so reused it. This is a basic one speed (sort of slow) wiper that just chugs along across the windshield. Someone said the sweep couldn't be changed. If you look at my photo you will see extra holes in the one gear. I believe if you move the pin, the sweep will change. The instructions could be better. I had the old motor to go by so it was no problem for me.
Most Liked Negative Review
3.0
The product is a universal fit product,
I ordered 2 of these in hopes they could be easy converted to turn in opposing directions for my classic truck. They were very easy to install but I was only able to get them to turn in the same direction and had to switch to a different style of wiper motor setup in the end. I would have preferred to have stayed with these because of their small size and ease of use.
Filter by Ratings
Works great so far!
5.0
2 months ago
J
Pa
Verified
I installed this on a kubota L3430 tractor. It was pretty much a direct replacement. I couldn't buy just the motor from the dealer they only sold a kit which was rediculous in price. Very happy with how it fit. We shall see how it holds up.
Would Recommend
wiper
5.0
3 months ago
omer
ma.
Verified
it fit perfect in my 1926 dodge
Would Recommend
Great product
5.0
11 months ago
Bat
Canada
Verified
Works great
Would Recommend
Works for me easy hook up
5.0
a year ago
Boss
Hedgesville
Verified
Put on my 31 model A coupe still work in progress it's all coming together thanks to u guys you're the best
Would Recommend
had purchased one before and it didn't last long.
5.0
a year ago
Al
St. Cloud, FL
Verified
The wiper motor, I first purchased didn't last long (about a year) so had to order another one.
Would Recommend
Great Product
5.0
a year ago
Olly
CT
Verified
Worked very well for my project. It was easy to install and make work with my custom.
Would Recommend
Would buy again
5.0
a year ago
None
Michigan
Verified
As advertised
Would Recommend
I would purchase this product again.
5.0
2 years ago
Ed
Central New York
Verified
Easy to follow instructions
nice chrome addition
5.0
4 years ago
Horses and hot rods ranch
Argyle NY
Verified
used this on an open roadster so it set on top of windshield frame and looked good when top down. self parking was a nice addition, just had to run 3 wires. also had to trim wiper blade to size of windshield.
Would Recommend
An excellent replacement tractor motor for rear wiper
5.0
4 years ago
GMan
MN
I have a 2004 Kubota L5030 tractor with a cab and rear wiper. The wiper motor quit working, and Kubota Corp. discontinued this motor and Speedway had a motor with the same dimensions as the one I needed to replace, considering it had to fit through a hole in the glass. I had to cut off the stem and threaded shaft to the same length that were on my old motor. I installed it and it worked perfectly; a great price, since Kubota wanted $195 for the same motor when it was available, but the Speedway price was $71.99!
Would Recommend
Showing 10 of 50 reviews
