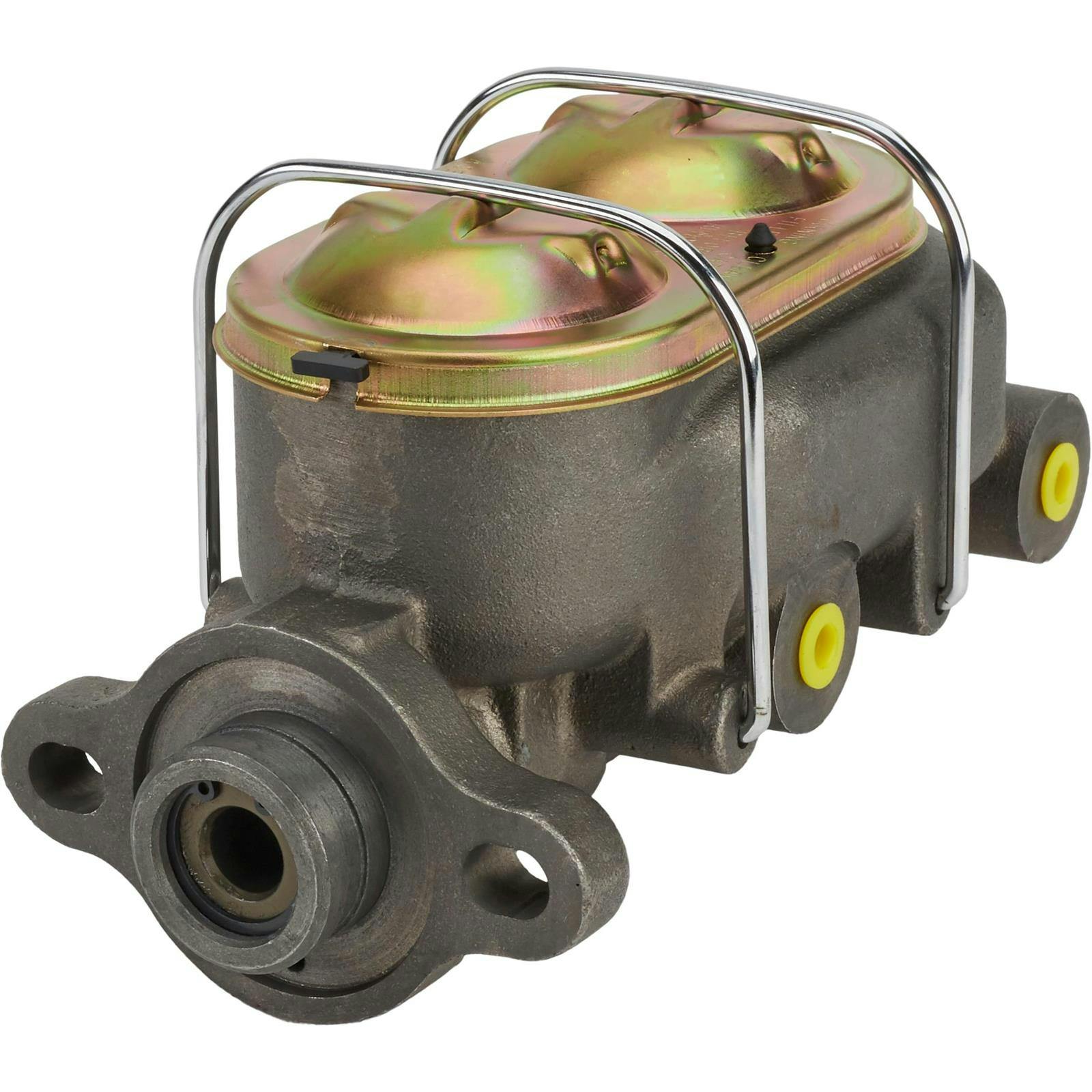

Universal Power/Manual Master Cylinder, 1 Inch Bore
- High-tech corvette-style master cylinders were designed using OE specifications and 100% tested
- Features a 1" bore and are suited for disc/drum combinations
- Each master cylinder has 3/8"-24 IFF outlets on both the left and right sides allowing for installation in many different applications
$77.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Disc/Drum Brake System Type, Natural
- High-tech corvette-style master cylinders were designed using OE specifications and 100% tested
- Features a 1" bore and are suited for disc/drum combinations
- Each master cylinder has 3/8"-24 IFF outlets on both the left and right sides allowing for installation in many different applications
- Design features a mating flange that works with applications requiring 3-1/8” through 3-3/8” bolt patterns
- Will work with manual or power brake systems
Key Specs
| MFG. Part # | 91031445 |
| Brand | Speedway Motors |
| Master Cylinder Bore Size | 1 Inch |
| Master Cylinder Material | Cast Iron |
| Finish | Natural |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91031445 Details
Speedway Motors 91031445 Details
These high-tech Corvette-style master cylinders were designed using OE specifications and 100% tested. They have a 1" bore and are suited for disc/drum combinations. Each master cylinder is ported on both the left and right sides, allowing for installation in many different applications. This exclusive design features a mating flange that works with applications requiring 3-1/8” through 3-3/8” bolt patterns. These master cylinders will work with manual or power brake systems and can be quickly changed with the included adapter pin to plug the deep well. The wide body and low profile gives this master cylinder the clearance you need when installing in tight areas and yet it maintains a large volume of fluid necessary for 2 and 4 wheel disc brake applications.
- 1" bore
- 3/8"-24 IFF outlet ports on both sides
- Plugs are included for the unused ports
- Mount spacing is 3-3/8", accommodates 3-1/8" applications
- Works with power or manual brake systems
- Compact, for installation under the floor or on the firewall
- Suited for either disc/disc or disc/drum combinations
- Stroke of this master cylinder is approximately 1-1/16"
- Has a piston adaptor that will allow for power or manual applications
Learn more about selecting the proper master cylinder for your vehicle by reading our tech article.Brake System Selection.
Charts
Guides & Documents
Speedway Motors 91031445 Specifications
Speedway Motors 91031445 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91031445 |
| Brand | Speedway Motors |
| Master Cylinder Bore Size | 1 Inch |
| Master Cylinder Material | Cast Iron |
| Finish | Natural |
| GENERAL | |
| Brake System Type | Disc/Drum |
| Outlet Count | Tandem |
| Reservoir Type | Integral |
| Stroke | 1.0625" |
| Reservoir Included | Yes |
| Number of Mounting Holes | Two |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Bail Type | Double Bail Wire Zinc Lid |
| Outlet Fitting | 3/8"-24 IFF |
| Overall Width | 4.5" |
| Overall Height | 4.75" |
| Mounted Length | 8" |
| Centerline of Holes | 3.38" |
| Sold in Quantity | Each |
| Bowl Design | Dual |
| Master Cylinder Usage | Brake |
