#91065082

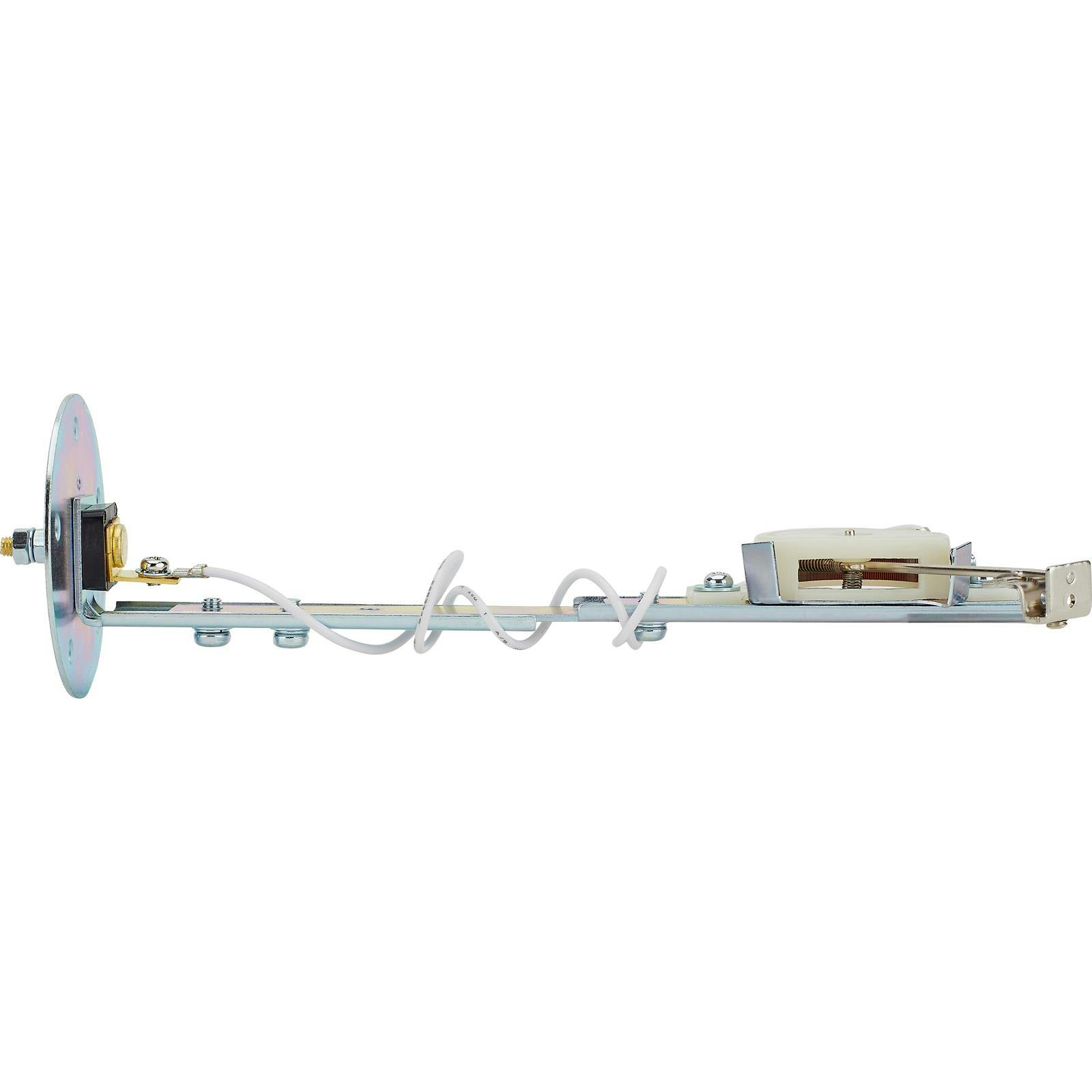

Universal Aftermarket Fuel Tank Gas Gauge Level Sender Unit
- Fuel Tank Sender Assemblies feature 240 ohms empty, 33 ohm full sender
- Adjustable depth from 6" to 24"
- Can be used as a right hand or left hand swing unit with minor adjustment
$36.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 24" Overall Length, Height Adjustable
- Fuel Tank Sender Assemblies feature 240 ohms empty, 33 ohm full sender
- Adjustable depth from 6" to 24"
- Can be used as a right hand or left hand swing unit with minor adjustment
- This fuel sender comes with a seal and all mounting hardware
- Works with our part #910-65042 fuel gauge
Key Specs
| MFG. Part # | 91065082 |
| Brand | Speedway Motors |
| Overall Length | 24" |
| Ohm Range | 240 ohms empty, 33 ohms full |
| Height Adjustable | Yes |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91065082 Details
Speedway Motors 91065082 Details
These sending units are also included in our 910-65042 fuel level gauge kit. They will work in tanks from 6" to 24" deep and can be used as a right hand or left hand swing unit with minor adjustment. This fuel sender comes with a seal and all mounting hardware.
- 240 ohms empty, 33 ohm full
- Adjustable depth from 6" to 24"
- Right or left hand swing
- 2-3/4" flange OD
- Overall Length: 15.50"
- Includes sealing gasket and mounting hardware
Learn more about selecting the proper fuel sending unit by reading our tech article, Fuel Sending Units.
Charts
Specs
This sender requires a 12 volt electrical system
Guides & Documents
Speedway Motors 91065082 Specifications
Speedway Motors 91065082 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91065082 |
| Brand | Speedway Motors |
| Overall Length | 24" |
| Ohm Range | 240 ohms empty, 33 ohms full |
| Height Adjustable | Yes |
| GENERAL | |
| Bolt Hole Pattern | SAE 5 hole (2.125 in. bolt circle) |
| Sold in Quantity | Each |
Ratings & Reviews
4.8
35 Reviews
Customers appreciate the product for its quality, usability, and practicality, particularly for its compatibility with different types of fuel tanks and gauges. The adjustable range feature enables adaptability to varying ohm requirements. The solid float is appreciated for its leak prevention. The product is easy to install, with clear instructions included, and is noted for its excellent construction quality. It can be easily trimmed to fit, with some users needing minor adjustments for perfect fit. Overall, the product garners high recommendations for its performance and value for money over competitor products.
Ratings & Reviews
4.8
35 Reviews
Customers appreciate the product for its quality, usability, and practicality, particularly for its compatibility with different types of fuel tanks and gauges. The adjustable range feature enables adaptability to varying ohm requirements. The solid float is appreciated for its leak prevention. The product is easy to install, with clear instructions included, and is noted for its excellent construction quality. It can be easily trimmed to fit, with some users needing minor adjustments for perfect fit. Overall, the product garners high recommendations for its performance and value for money over competitor products.
4.8
35 reviews
5
32
4
1
3
1
2
1
1
0
Most Liked Positive Review
5.0
Customer service is the best !!
I have ordered thousands of dollars worth of parts over the last two years. I am restoring my high school 54 ford f100. I've bought 80% of my parts from speedway because the website is easy to use, free shipping above a certain amount purchased and no hassles if there's a problem!!! I've not encountered any issues except last week. I bought a fuel tank with sending unit a year and 1/2 ago and just installed it. I couldn't get the gauge to work. I called the tech like and spoke with Kelly and he agreed it's a weird problem and they would send me a new fuel sending unit. Not only did the higher ups send it for free even though it was out of warranty they paid for two day shipping cause I needed it for this weekend!!!! That's why I buys my parts from speedway motors!!! Thanks guys!! BTW. My part just arrived!!! PS we weren't sure if it was the sending unit so I will update them in a few days
Most Liked Negative Review
3.0
I would probably not buy this product again.
I would probably buy a sending unit with a ring that slides up and down the tube if I had it to do over. I believe it would be an easier and more accurate installation. But overall satisfied.
Filter by Ratings
I would buy this sender again if I needed another one.
5.0
23 days ago
Koda
Iowa
Verified
I used this sender on an earlier Dodge D50 pickup tank. It was very adjustable and didn't need much for modifications. This is the only one I could find to work.
Would Recommend
Customer service is the best !!
5.0
3 months ago
Don Pommerville
Lompoc ca
I have ordered thousands of dollars worth of parts over the last two years. I am restoring my high school 54 ford f100. I've bought 80% of my parts from speedway because the website is easy to use, free shipping above a certain amount purchased and no hassles if there's a problem!!! I've not encountered any issues except last week. I bought a fuel tank with sending unit a year and 1/2 ago and just installed it. I couldn't get the gauge to work. I called the tech like and spoke with Kelly and he agreed it's a weird problem and they would send me a new fuel sending unit. Not only did the higher ups send it for free even though it was out of warranty they paid for two day shipping cause I needed it for this weekend!!!! That's why I buys my parts from speedway motors!!! Thanks guys!! BTW. My part just arrived!!! PS we weren't sure if it was the sending unit so I will update them in a few days
Would Recommend
Yes for the fuel sender
5.0
3 months ago
32Ford
Jax., Fl
Verified
Everything was perfect
Would Recommend
I would buy this product again
5.0
3 months ago
Bob
Granger, Iowa
Verified
The Sending unit worked great in my new project. Working on a !947 Panel Truck which has been updated with modern drivetrain and 12 volt system. Unit would have been a little easier to install if came with instructions for setting the float. Happy with unit and the price.
Would Recommend
I would probably not buy this product again.
3.0
3 months ago
Red tractor
Mississippi
Verified
I would probably buy a sending unit with a ring that slides up and down the tube if I had it to do over. I believe it would be an easier and more accurate installation. But overall satisfied.
Would Not Recommend
Yes
5.0
4 months ago
Anglia
Las Vegas
Verified
Worked great
Would Recommend
Great product, great price
5.0
a year ago
Jake
Deloit,iowa
Verified
Would of been better if it came with instructions on how to adjust properly
Would Recommend
I would buy this product again
5.0
a year ago
Mechanic
San Antonio Texas
Verified
The sender is a good fit and went on with little effort. I would definitely recommend it
Would Recommend
Great customer service, very patient and very professional.
5.0
a year ago
Pumpkin Cars
Egg Harbor Twp., New Jersey
Verified
Part was perfect. Shipping was quick and on-time. Representative was very pleasant and very precise. Thank you.
Would Recommend
I would , but I won't have no need to again it worked great
5.0
2 years ago
None
Montana
Verified
I used it in a gas tank , it worked good
Would Recommend
Showing 10 of 35 reviews
