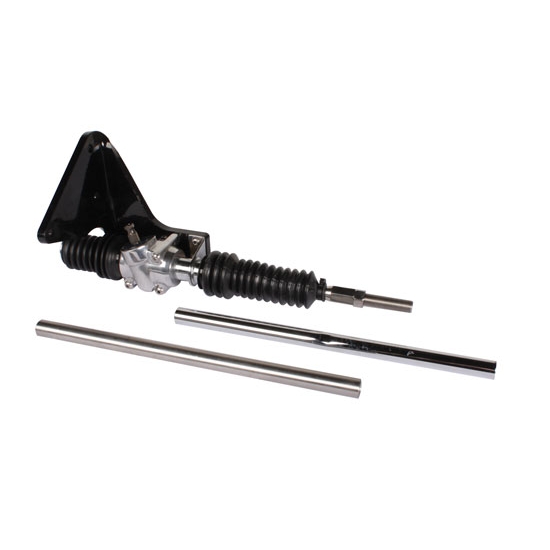

Unisteer 1928-34 Ford Cross-Steer Rack and Pinion, RH Drive
33-34 Model 40, 1932 Model B, 1932 Model 18, 28-31 Model A, 28-34 Sedan Delivery, 1933 Model 46
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
This is a great new concept for street rods with tubular or I-beam axles. It's hard to visualize how this works, but it's the hottest new idea out there!
Designed to replace the common Vega steering box, this rack and pinion assembly has a long passenger-side tie rod that hooks up to the spindle like a Vega-style drag link. The rack unit is mounted on a sturdy bracket that bolts to your existing Vega box mount. The rack mounts much lower and farther forward than a box to provide more clearance, and those who have installed the system report quicker steering response and easier effort than a steering box.
The racks have 9/16" 26-spline shafts and the extension shafts are 5/8" 36-spline, just like a Vega box. Plus, our steering shaft extension 910-32244 allows you to reuse your existing steering U-joints and shafts when replacing your Vega box.
Specify 11/16" or 5/8" tie rod thread. The 5/8" is used with a LH heim joint, 11/16" is used with a LH tie rod end. Outer tie rod and jam nut not included.
If you are using heim ends, you may wish to order heim 175-0316 and jam nut 910-01056. If using tie rod ends, you may wish to order tie rod end 910-02919 and jam nut 910-01159.
Note: This is a Right Hand steer unit which will place the chassis bracket and pinion assembly on the right hand side of the chassis to replicate a vehicle which will have the driver seat and steering wheel/steering column assembly located on the right side of the vehicle.
- From the back side of the frame mount to the end of threads on the rack is 19.5", 2.0" of that is threads
- The drag link tube is 16.5" long
- Assembled length is 34.0" long with about 1.0"-1.5" of adjustment
What's In The Kit
Unisteer 8000650-01 1928-32 Ford RH Drive Cross-Steer Rack and PinionPart # 91032341Qty x 1
Stainless Steel Draglink Tube for Rack & PinionPart # 91034210Qty x 1
