Add to Cart
$599.99

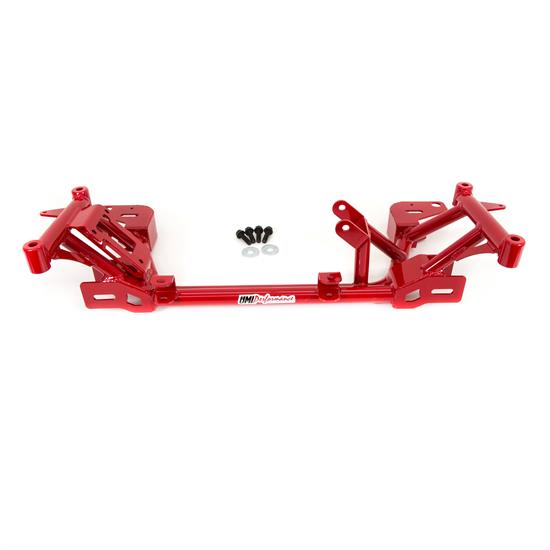

UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red

UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red

Front Position, K-Member Crossmember Type, Tubular Crossmember Style, Bolt-on Attachment Style

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
X
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
UMI 2325-R 93-97 F-Body K-Member LT1, with Motor Mounts, Red
Zoomed In Image
We estimate this item will ship on or before October 5th.
Part # 1852325R
$599.99
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Crossmember Type:
K-Member
Crossmember Style:
Tubular
Attachment Style:
Bolt-on
Steering System Compatibility:
Power Rack and Pinion
Material Type:
Steel
Finish:
Powder Coated
Color:
Red
Sold in Quantity:
Kit
MFG. Part #:
2325-R

Info

We all know weight equals horsepower. UMI’s direct bolt-in replacement k-member instantly removes 25lbs of front end weight from your ride and helps your existing horsepower work for you. UMI’s industry exclusive dual tube construction and a host of high-strength features ensure this item will survive street use, drag strip blasts and autocross action. UMI’s k-member is fabricated from USA steel and held together by a strong dual tube lower section. Factory motor mounts bolt to ¼” thick laser cut mounting stands while both factory and aftermarket a-arms are located by strong boxed mounting points featuring additional alignment adjustment over factory. The tubular construction and integrated motor mount stands provides added clearance for aftermarket headers and tubular set ups. Combine the UMI k-member with a set of tubular lower a-arms and save 33lbs on the front of your 4th Gen. The UMI k-member is the strongest in the business and we mean it.

K-member features and benefits:

  • The UMI k-member is the strongest in the business. UMI’s dual tube center section adds increased strength over competitors designs.

  • Factory location rack mounts.

  • Main k-member cross tubes constructed of 1-1/2” OD DOM steel tubing.

  • Boxed a-arm mounts are CNC laser cut from 3/16” steel plate.

  • Tubular design offers clearance for headers and turbo piping.

  • A-arm slots lengthened for additional alignment adjustment.

  • Rear main k-member cross tube lowered for oil pan protection. Our k-member protects your expensive engine.

  • Reduces front end weight by 25lbs and improves rear percentage for a better launch.

  • Durable gloss red or gloss black powder coat.

  • Fabricated 100% in-house and always of 100% US Steel.

  • Race proven in 1200 hp single digit drag cars as well as daily drivers across the world.

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
