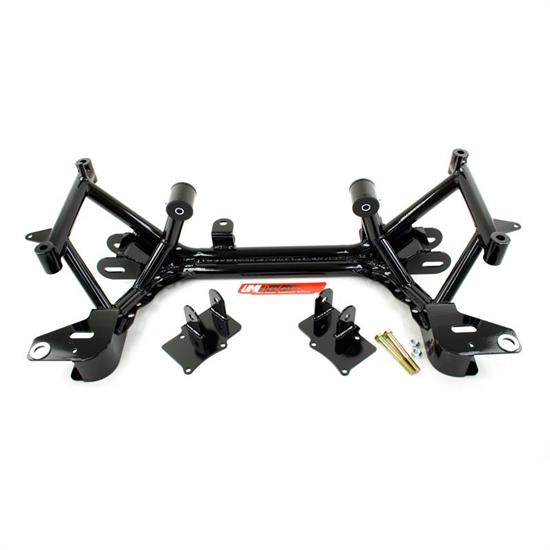

UMI 2322-B 93-02 F-Body K-Member with SBC/BBC Motor Mounts, Black

The UMI Performance big block/small block K-member allows the installation of a traditional Chevrolet small block or big block into a 1993-2002 Camaro or Firebird. The UMI tubular K-member features integrated polyurethane mount mounts and fabricated mounting clam shells for maximum weight savings and installation ease. K-member includes power steering rack mounts and is a direct bolt in application.

Note: Although this K-member allows easy installation of a small block or big block Chevrolet engine modifications to firewall and other areas may be necessary for proper engine clearance.

Features:

• Main center tube constructed of 1.500” x 0.120” DOM seamless steel tubing
• Additional cross braces use 1.250” x 0.120” DOM seamless steel tubing
• Entire K-Member features both TIG & MIG welded construction for superior strength
• Front & rear A-Arm mounts CNC machined & fabricated from 0.188" thick steel
• Rear A-Arm mounts gusseted to with-stand extreme side loads & pressure
• Dual tube center section adds increased strength over any competitors design
• All mounting plates are CNC machined to ensure hole to hole accuracy
• Factory locator pins included for easy installation & exact fit
• Completely fixture welded to ensure factory fitment with no grinding or cutting
• Standard power steering rack mounts included
• Durable powder coat finish, available bright red or gloss black

K-Member Benefits:

• Automatically reduces 25lbs of front end weight
• Offers additional clearance for headers & turbo piping
• A-Arm slots lengthened a 1/2" over factory for additional adjustment
• Rear main cross tube lowered for oil pan protection & coverage
• Uses integrated motor mounts for maximum weight reduction

Installation Instructions (PDF)
