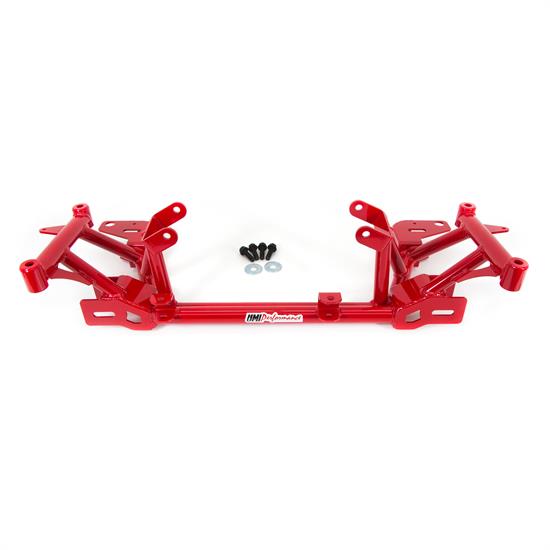

UMI 2320-R 98-02 F-Body Tubular K-Member LS1, Bolt-On, Red

#1852320R

UMI 2320-R 98-02 F-Body Tubular K-Member LS1, Bolt-On, Red

Name: UMI 2320-R 98-02 F-Body Tubular K-Member LS1, Bolt-On, Red
Brand: UMI Performance
SKU: 1852320R
Price: 729.99 USD
Availability: InStock

Write a Review

Ask a Question

$729.99

/set

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, K-Member Crossmember Type, Steel

See more details

Key Specs

MFG. Part #	2320-R
Position	Front
Crossmember Type	K-Member
Crossmember Style	Tubular
Attachment Style	Bolt-on

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

UMI Performance 2320-R Details

We all know weight equals horsepower. UMI’s direct bolt-in replacement k-member instantly removes 25lbs of front end weight from your ride and helps your existing horsepower work for you. UMI’s industry exclusive dual tube construction and a host of high-strength features ensure this item will survive street use, drag strip blasts and autocross action. UMI’s k-member is fabricated from USA steel and held together by a strong dual tube lower section. Factory motor mounts bolt to ¼” thick laser cut mounting stands while both factory and aftermarket a-arms are located by strong boxed mounting points featuring additional alignment adjustment over factory. The tubular construction and integrated motor mount stands provides added clearance for aftermarket headers and tubular set ups. Combine the UMI k-member with a set of tubular lower a-arms and save 33lbs on the front of your 4th Gen. The UMI k-member is the strongest in the business and we mean it.

K-member features and benefits:

The UMI k-member is the strongest in the business. UMI’s dual tube center section adds increased strength over competitors designs.

Factory location rack mounts.

Main k-member cross tubes constructed of 1-1/2” OD DOM steel tubing.

Boxed a-arm mounts are CNC laser cut from 3/16” steel plate.

Tubular design offers clearance for headers and turbo piping.

A-arm slots lengthened for additional alignment adjustment.

Rear main k-member cross tube lowered for oil pan protection. Our k-member protects your expensive engine.

Reduces front end weight by 25lbs and improves rear percentage for a better launch.

Durable gloss red or gloss black powder coat.

Fabricated 100% in-house and always of 100% US Steel.

Race proven in 1200 hp single digit drag cars as well as daily drivers across the world.

Charts

Installation Instructions (PDF)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

UMI Performance 2320-R Specifications

KEY SPECS
MFG. Part #	2320-R
Brand	UMI Performance
Position	Front
Crossmember Type	K-Member
Crossmember Style	Tubular
Attachment Style	Bolt-on

GENERAL
Steering System Compatibility	Power Rack and Pinion
Material Type	Steel
Finish	Powder Coated
Color	Red
Sold in Quantity	Set

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1998-2002 Chevy Camaro

1998-2002 Pontiac Firebird
