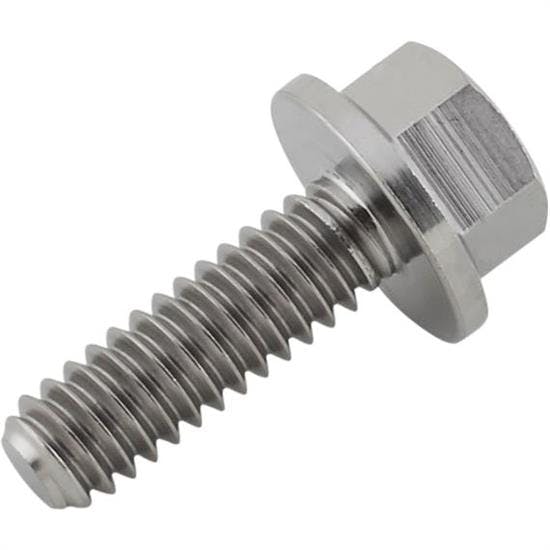

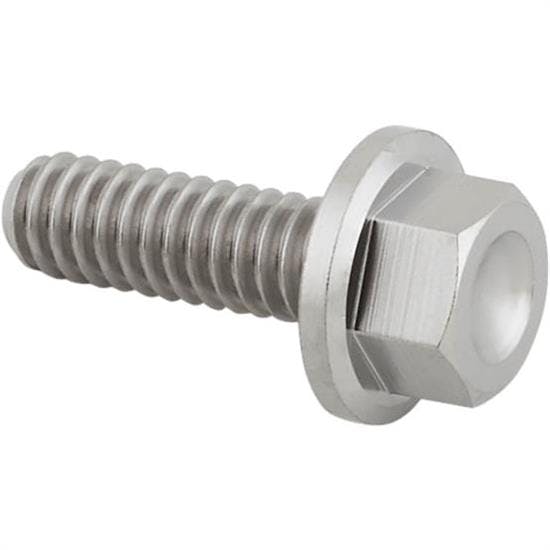

Product Summary

Universal Fit, 0.75" Under Head Length, Hex Wrench Type

  • Coarse thread titanium hex bolt
  • Flanged head to help evenly distribute force
  • Greater tensile strength than Grade 8 bolts
  • 42% lighter than steel
  • 1/4"-20 thread x 3/4" long

Key Specs

MFG. Part #940-6363
BrandSpeedway Motors

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Speedway Motors 940-6363 Details

  • Titanium bolts are perfect for beadlock wheel ring mounting
  • Nearly half the weight of a steel Grade 8 bolt with similar strength
  • Flanged head design to evenly spread clamping load with or without a washer
  • Standard hex for use with common 6- or 12-point sockets
  • Reduce rotating wheel mass by replacing all your beadlock bolts with titanium bolts

Weight is a Racer’s Worst Enemy and Titanium Bolts Are a Great Way to Put Your Race Car on A Diet

It doesn’t matter what you race, weight is always a racer’s top concern. Trying to find a way to reduce overall chassis weight and determine where best to place the weight on the chassis is a constant struggle. From fluids to the battery, and even wiring, everything is considered for weight reduction and location on a race car’s frame.

If you race the local dirt track or dragstrip where your race car uses beadlock wheels you may have thought that the beadlock design and its high fastener count was unavoidable to ensure your tires stay mounted on the wheel’s bead at low tire pressures and high tire loads. That is true, but you can find weight savings here as well by upgrading from the beadlock ring’s steel bolts to titanium beadlock bolts.

Titanium beadlock bolts have equal, if not higher, tensile strength to the same size Grade 8 steel beadlock bolts at anywhere from 40-50 percent reduction in weight (depending upon bolt size). That adds up quick when you’re talking roughly 20 beadlock bolts per wheel on a single 15-inch beadlock wheel. If you run a larger diameter wheel or double beadlocks your weight savings will be even larger!

Our Tru-Lite titanium beadlock bolts are designed with a six-point flange head for easy installation that provides greater clamping force than a standard head with separate washer. The threads are heat treated and rolled for strength, but the use of an assembly lube to prevent galling is highly encouraged. These Tru-Lite titanium bolts are available in three sizes to cover the most common beadlock ring fastener needs, including 5/16-18 x 3/4-inch5/16-18 x 1-inch, and 1/4-20 x 3/4-inch.

Speedway Motors 940-6363 Specifications

MFG. Part #940-6363
BrandSpeedway Motors
Speedway Motors Catalog Part #940-6363
Overall Diameter0.56"
Overall Length1.03"
Under Head Length0.75"
Wrench TypeHex
Wrench Size3/8"
Thread TypeRH Male
Thread Length0.75"
Thread Pitch1/4"-20
Material TypeTitanium
Sold in QuantityEach
