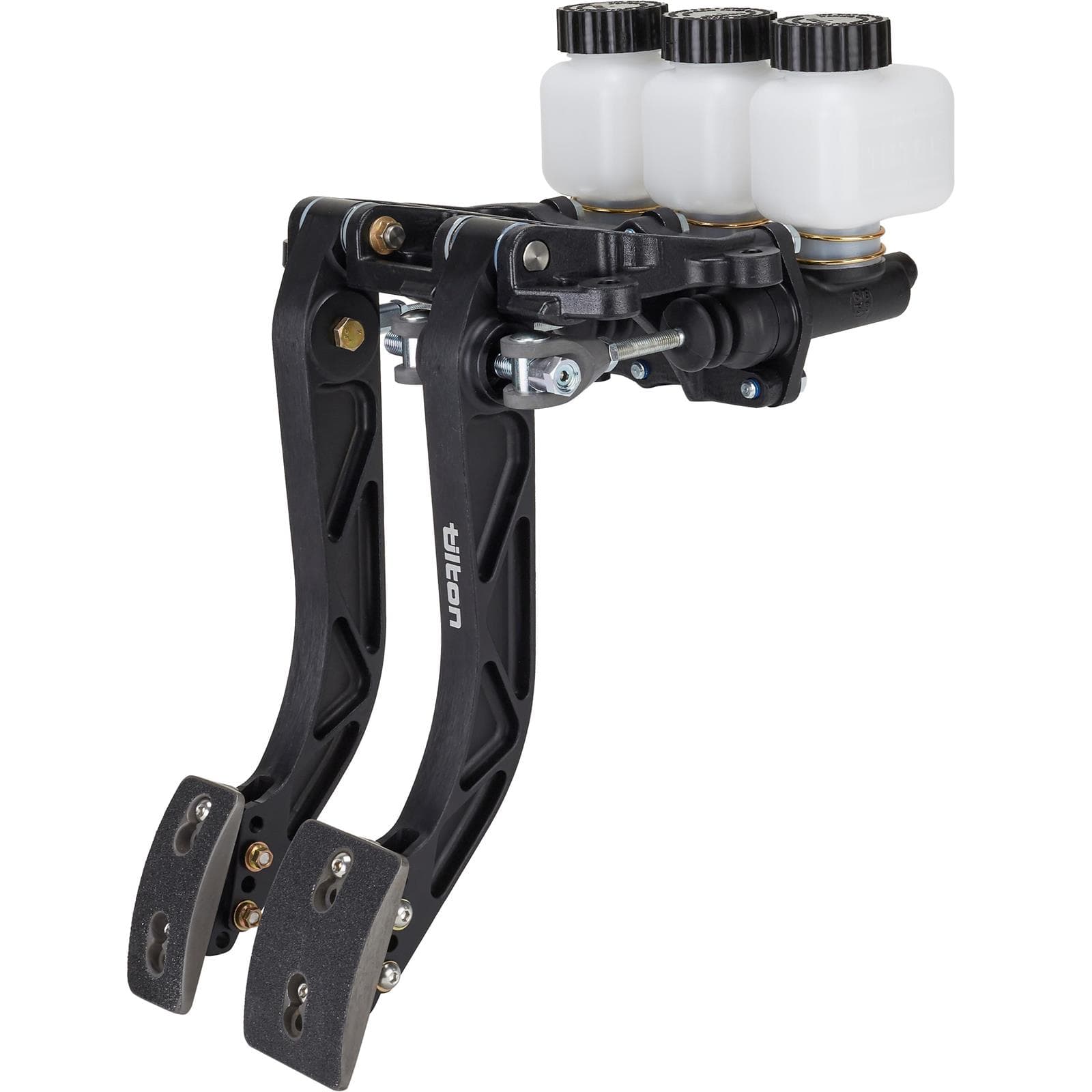

Tilton 72-607 2-Pedal Firewall Mount w/75 Series Master Cylinders

Kit Includes:

• (1) Tilton 72-607 600 Series 2-Pedal Aluminum Firewall Mount Assembly
• (3) Tilton 75 Series Master Cylinder Kits

Tilton 72-607 600 Series 2-Pedal Aluminum Firewall Mount Assembly

Tilton’s 600-Series pedal assemblies feature traditional fixed-mount master cylinder and balance bar technology and provide excellent performance at competitive prices. Pedal assemblies are available in floor-mount, firewall-mount, and overhung configurations.

• Forged aluminum pedals with adjustable (vertical & horizontal) foot pads and anti-slip surfaces.
• Adjustable pedal ratios (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
• Large diameter 7/16”-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
• Pedal pivots feature wave washers to reduce lateral pedal movement and oil-impregnated bronze bushings decrease stiction.
• Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.
• Adjustable clutch pedal stop prevents clutch over-stroking.

Tilton 75 Series Master Cylinder Kit

75-Series master cylinders are designed for applications where space limitations require a compact master cylinder. 75-Series master cylinders are 2.4" shorter than 74-Series master cylinders, but maintain a full 1.1" of stroke.

• Aluminum Master cylinder
• 6.8 oz reservoir
• Remote reservoir mounting components
