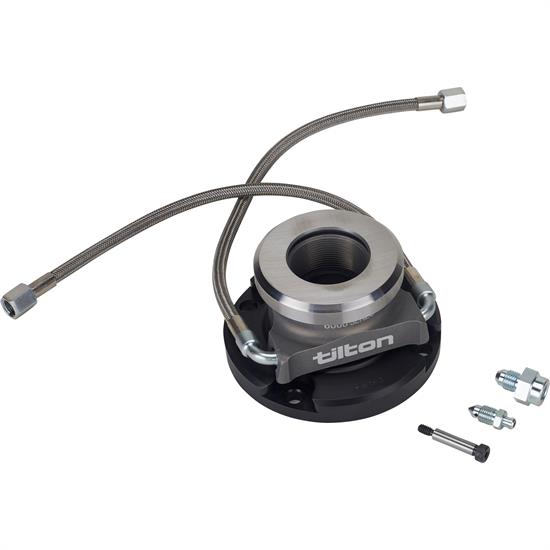

Tilton 60-6106 Flat Face Hydraulic Release Bearing GM TKO/500/600
1 Review
|
Ask a Question
$429.25
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
TKO, Flat Face Throwout Bearing Style, .70" Travel
See more details
Key Specs
| MFG. Part # | 60-6106 |
| Brand | Tilton |
| Throwout Bearing Style | Flat Face |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyTilton 60-6106 Details
Tilton 60-6106 Details
Tilton’s 6000-Series hydraulic release bearings (also known as hydraulic throwout bearings or concentric slave cylinders) feature race-proven Tilton reliability for the street. These hydraulic release bearings have been designed for ease of installation and maximum reliability, at a very competitive price. 6100-Series hydraulic release bearings are designed to mount onto the transmission input shaft bearing retainer.
Charts
Instruction Sheet (PDF)
Installation Diagram (PDF)
Guides & Documents
Tilton 60-6106 Specifications
Tilton 60-6106 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 60-6106 |
| Brand | Tilton |
| Throwout Bearing Style | Flat Face |
| GENERAL | |
| Travel | .70" |
| Inlet Fitting | -4 AN |
| Outlet Fitting | -4 AN |
| Notes | Designed to fit GM Tremec transmissions using a 8.5 inch thru 11 in. clutch having a 1.71 in thru 3.03 inch flat face. |
| Sold in Quantity | Each |
